MEAN WELL Enclosed Power Supply SE-1000 Series Single Output Switching Power Supply

Product Item : SE-1000 series
Category：Enclosed Type
Wattage: 1000W
Input Voltage: 90 ~ 132VAC/180 ~ 264VAC by switch 254 ~ 370VDC
Output Current: 0 ~ 150A
Output Voltage: 5 ~ 48V
Product description：The Mean Well SE-1000 is a 1000W single-output AC/DC power supply with active PFC, designed for reliable industrial and general-purpose use.
INQUIRY EMAIL

SE-1000 Series - 1000W Single-Output Enclosed Switching Power Supply

✓ In Stock2-Year Warranty6 Voltage OptionsUL/BSMI ListedDC OK + Remote

				Key Performance at a Glance

						1000W

						Rated Power

						150A

						Max Current (5V)

						89%

						Max Efficiency

						7.3W/in3

						Power Density

						-20~60C

						Operating Temp

						6

						Output Models

Product Overview

The SE-1000 series is MEAN WELL's flagship enclosed switching power supply - delivering 1000W across 6 output voltage options from 5V to 48V. With an industry-leading 7.3W/in3 power density, 150A capability at 5V, and system-level features including DC OK signal output, remote ON/OFF control, and remote sense, it is the ultimate cost-effective enclosed solution for large-scale industrial and system-integration applications.

The SE-1000 uses a switchable 90~132VAC / 180~264VAC input (selected via TB2 terminal block) and supports 254~370VDC input. Built around a 55KHz switching design with DC fan cooling and active inrush current limiting, it delivers 1000W across -20C to +60C. Unique features include a DC OK TTL signal for system health monitoring, remote ON/OFF (0~0.8V=ON, 4~10V=OFF), and a 9V model not found in any other enclosed SE/SE supply.

Measuring 278x127x63.5mm, the SE-1000 shares the same width and height as the SE-600 but extends length to 278mm for higher power. Full EMC immunity suite includes ESD Level 3, Surge 4KV line-to-earth, EFT Level 3, and Magnetic Field Level 4 - surpassing the protection levels of smaller SE models and making it suitable for heavy-industrial and utility environments.

The SE-1000 is UL62368-1 (UL/CUL), BSMI CNS15598-1, and EAC TP TC 004 certified with design reference to BS EN/EN62368-1. Note the UVP circuit requires ~5 seconds after AC cycling before restart. Not EN61000-3-2 compliant for certain EU applications. Over-temp protection at 70C (TSW1) with auto-recovery. 2-year warranty.

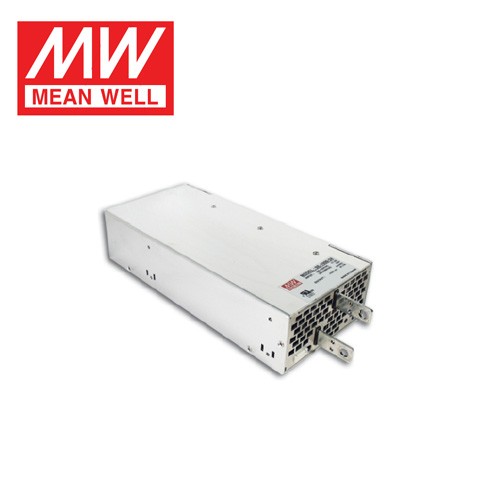

Product Images

Technical Specifications

Parameter	SE-1000-5	SE-1000-9	SE-1000-12	SE-1000-15	SE-1000-24	SE-1000-48
DC Output Voltage	5V	9V	12V	15V	24V	48V
Rated Current	150A	100A	83.3A	66.7A	41.7A	20.8A
Rated Power	750W	900W	999.6W	1000.5W	1000.8W	998.4W
Ripple & Noise (max)	150mVp-p	150mVp-p	150mVp-p	150mVp-p	200mVp-p	200mVp-p
Voltage Adj Range	3.3~5.5V	7.5~10V	10~13.5V	13.5~16.5V	22~27.5V	43~56V
Voltage Accuracy	+/-1.0%	+/-1.0%	+/-1.0%	+/-1.0%	+/-1.0%	+/-1.0%
Line Regulation	+/-0.5%	+/-0.5%	+/-0.5%	+/-0.5%	+/-0.5%	+/-0.5%
Load Regulation	+/-1.0%	+/-0.5%	+/-0.5%	+/-0.5%	+/-0.5%	+/-0.5%
Efficiency (Typ.)	81%	84%	85%	86%	88%	89%

Input Specifications (All Models)

Input Voltage Range	90~132VAC / 180~264VAC (TB2 terminal block select); 254~370VDC
Inrush Current Limiting	Active inrush current limiting circuit built-in
Frequency Range	47~63Hz
AC Current (Typ.)	17.5A / 115VAC \| 10A / 230VAC
Inrush Current (Typ.)	35A / 115VAC \| 55A / 230VAC (cold start)
Leakage Current	< 2.5mA / 240VAC

Protection & System Features

Overload Protection	105%~125% rated power -> output shutdown; power cycle to recover
Overvoltage Protection	5V: 5.75~6.75V / 9V: 10.4~12.2V / 12V: 13.8~16.2V / 15V: 18~21V / 24V: 28~32.4V / 48V: 57.6~67.2V (shutdown; power cycle to recover)
Over-temperature Protection	70C +/-5C (TSW1 on power transistor heatsink); auto-recovery
DC OK Signal	TTL output: PSU ON = 3.3~5.6V, PSU OFF = 0~1V (system health monitoring)
Remote ON/OFF	RC+/RC-: 0~0.8V = PSU ON, 4~10V = PSU OFF (external control capability)
Remote Sense	CN3 connector (+S / -S pins)
UVP Circuit	Built-in under-voltage protection; ~5 sec delay before restart after AC cycling

Environmental Ratings

Operating Temperature	-20~+60C (refer to derating curve)
Operating Humidity	20~90% RH, non-condensing
Storage Temp / Humidity	-40~+85C, 10~95% RH
Temperature Coefficient	+/-0.05%/C (0 ~ 50C)
Vibration Resistance	10~500Hz, 2G, 10 min/cycle, 60 min each for X, Y, Z axes
MTBF	>= 1,273.6K hrs (Telcordia SR-332); >= 251.6K hrs (MIL-HDBK-217F, 25C)
Dimensions	278 x 127 x 63.5 mm (LxWxH)
Net Weight / Packaging	2.5 kg / 6 pcs per carton / 16 kg / 1.38 CUFT

Safety & EMC

Safety Standards	UL62368-1 (UL/CUL), BSMI CNS15598-1, EAC TP TC 004 certified; Design ref: BS EN/EN62368-1
Withstand Voltage	I/P-O/P: 3KVAC \| I/P-FG: 2KVAC \| O/P-FG: 0.5KVAC
Insulation Resistance	I/P-O/P, I/P-FG, O/P-FG: > 100Mohm / 500VDC / 25C / 70% RH
EMC Emissions	BS EN/EN55032 (CISPR32) Class A, CNS15936; Not EN61000-3-2/-3-3 compliant
EMC Immunity	ESD Level 3 (8KV air/4KV contact), Radiated Level 3, EFT Level 3, Surge 2KV/4KV, Conducted Level 3, Magnetic Field Level 4, Voltage Dips 95%/30%

Key Features

1000W / 7.3W/in3 Density
Flagship 1000W enclosed supply with the highest power density in the SE family

DC OK Signal Output
TTL signal (3.3~5.6V=ON) for system health monitoring - critical for PLC and SCADA integration

Remote ON/OFF Control
External control via RC+/RC- pins (0~0.8V=ON, 4~10V=OFF) for automated system sequencing

150A at 5V / 750W
Highest current in the SE family - for massive digital logic and test equipment racks

Remote Sense
Load-side voltage regulation via CN3 for precise control over long cable runs

Full EMC Immunity Suite
Surge 4KV, EFT Level 3, ESD Level 3, Magnetic Field Level 4 - heavy-industrial ready

UL/CUL + BSMI Certified
UL62368-1 for North America, BSMI CNS15598-1 for Taiwan, EAC for Eurasia

Active Inrush Limiting
35A/115VAC startup surge - protects AC distribution on high-power circuits

70C Overtemp Protection
TSW1 monitors transistor heatsink directly - precise thermal protection with auto-recovery

2-Year Warranty
MEAN WELL quality assurance with global warranty coverage

Frequently Asked Questions

What is the DC OK signal and how do I use it?

The DC OK signal is a TTL-level output on the CN3 connector that indicates power supply health. When the PSU is operating normally, it outputs 3.3~5.6V. When the output fails or is shut down, it drops to 0~1V. Connect it to a PLC digital input, SCADA system, or monitoring relay for automated fault detection. This is one of the key features that sets the SE-1000 apart from smaller SE/SE models for system integration applications.

How does the SE-1000 differ from the SE-600?

The SE-1000 delivers 1000W vs 600W - a 67% power increase. Key differences: (1) larger (278mm vs 247mm length); (2) adds DC OK signal and remote ON/OFF control not available on SE-600; (3) 9V model unique to SE-1000; (4) 150A at 5V vs 100A; (5) 7.3W/in3 density vs 4.9W/in3; (6) BSMI certified (not on SE-600); (7) full EMC immunity table including Magnetic Field Level 4; (8) UVP circuit with 5-sec restart delay; (9) TB2 input selection vs switch. Choose the SE-1000 for system integration projects requiring monitoring and remote control.

How does the UVP circuit affect operation?

The UVP (Under-Voltage Protection) circuit prevents rapid on/off cycling. After AC power is applied or cycled off/on, the SE-1000 will not restart for approximately 5 seconds. This intentional delay protects internal components and prevents output glitches. If you need instant restart, this model may not be suitable for your application.

Can the SE-1000 be used in EU countries?

The SE-1000 is not compliant with EN61000-3-2/-3-3 harmonic current and voltage flicker limits. EMC emissions are Class A (industrial), not Class B (residential). It should NOT be used in consumer/residential equipment within the EU or in Class B environments. For industrial/professional EU applications meeting the exemption criteria (>1000W equipment), it may be acceptable - consult your compliance engineer.

How do I wire the remote ON/OFF control?

Connect RC+ and RC- on CN3 to an external switch or relay. Closed contact (0~0.8V) = PSU ON, Open contact (4~10V) = PSU OFF. You can use an external DC source (6~20mA) or a dry contact. This enables automated system power sequencing - turn on the 48V rail only after the 24V rail is stable, for example. Refer to the user manual for detailed wiring diagrams.
