MEAN WELL Enclosed Power Supply SE-600 Series Single Output Switching Power Supply

Product Item : SE-600 series
Category：Enclosed Type
Wattage: 600W
Input Voltage: 90 ~ 132VAC/180 ~ 264VAC by switch 254 ~ 370VDC
Output Current: 0 ~ 100A
Output Voltage: 5 ~ 48V
Product description：The Mean Well SE-600 is a 600W single-output AC/DC power supply with active PFC, designed for reliable industrial and general-purpose use.
INQUIRY EMAIL

SE-600 Series - 600W Single-Output Enclosed Switching Power Supply

✓ In Stock 2-Year Warranty 7 Voltage Options CB/UL/KC Listed Remote Sense

				Key Performance at a Glance

						600W

						Rated Power

						100A

						Max Output Current

						88%

						Max Efficiency

						4.9W/in3

						Power Density

						-20~60C

						Operating Temp Range

						7

						Output Models

Product Overview

The SE-600 series is MEAN WELL's 600W single-output enclosed switching power supply, offering 7 output voltage options from 5V to 48V including a unique 27V model. With 100A capability at 5V and an impressive 4.9W/in3 power density, it is the highest-power model in the SE family - designed for demanding industrial, test equipment, and automation applications requiring robust enclosed power delivery.

The SE-600 uses a switchable 90~132VAC / 180~264VAC input (selected via built-in switch) and supports 254~370VDC input. Built around a 68KHz switching design with built-in DC fan cooling, active inrush current limiting, and remote sense via CN4 connector, it delivers reliable 600W output across a -20C to +60C temperature range. The series stands out with its broader certification portfolio including CB, UL (60950-1 + 62368-1), KC (12V/24V), and EAC.

Measuring 247x127x63.5mm, the SE-600 is the largest enclosed supply in the SE family. Compared to the SE-450, it offers 33% more power, a 27V option, KC certification for Korean markets, 100A at 5V (vs 75A), and wider temperature range (-20C vs -10C minimum). The 27V model (599.4W) is a unique offering rarely found in competing enclosed supplies.

The SE-600 is CB IEC62368-1, UL62368-1, and UL60950-1 certified with EAC TP TC 004 and KC K60950-1 (12V/24V). IS13252 (BIS) certification applies to all models except 48V. Protection includes short-circuit, overload (105%~125%), overvoltage, and over-temperature (85C on heatsink). Note: Not EN61000-3-2 compliant for certain EU applications; protection recovery requires a power cycle.

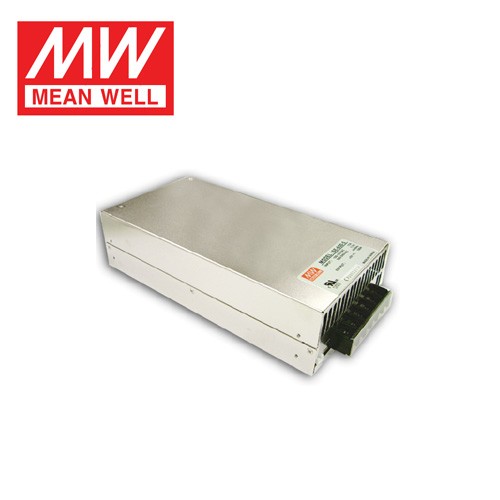

Product Images

Technical Specifications

Parameter	SE-600-5	SE-600-12	SE-600-15	SE-600-24	SE-600-27	SE-600-36	SE-600-48
DC Output Voltage	5V	12V	15V	24V	27V	36V	48V
Rated Current	100A	50A	40A	25A	22.2A	16.6A	12.5A
Rated Power	500W	600W	600W	600W	599.4W	597.6W	600W
Ripple & Noise (max)	150mVp-p	150mVp-p	150mVp-p	150mVp-p	150mVp-p	200mVp-p	200mVp-p
Voltage Adjustment Range	4.75~5.5V	10~13.5V	13.5~16.5V	22~26.4V	24~30V	32~40V	43~56V
Voltage Accuracy	+/-2.0%	+/-1.0%	+/-1.0%	+/-1.0%	+/-1.0%	+/-1.0%	+/-1.0%
Line Regulation	+/-0.5%	+/-0.5%	+/-0.5%	+/-0.5%	+/-0.5%	+/-0.5%	+/-0.5%
Load Regulation	+/-2.0%	+/-0.5%	+/-0.5%	+/-0.5%	+/-0.5%	+/-0.5%	+/-0.5%
Efficiency (Typ.)	78%	83%	84%	87%	87%	87%	88%

Input Specifications (All Models)

Input Voltage Range	90~132VAC / 180~264VAC (switch-selectable); 254~370VDC
Inrush Current Limiting	Active inrush current limiting circuit built-in
Frequency Range	47~63Hz
AC Current (Typ.)	12A / 115VAC \| 7.5A / 230VAC
Inrush Current (Typ.)	30A / 115VAC \| 60A / 230VAC (cold start)
Leakage Current	< 2.0mA / 240VAC

Protection Features & Environmental Ratings

Overload Protection	105%~125% rated power -> output shutdown; power cycle to recover
Overvoltage Protection	5V: 5.75~6.3V / 12V: 13.8~16.2V / 15V: 18~21V / 24V: 27.6~32.4V / 27V: 31~36.5V / 36V: 42~50V / 48V: 57.6~67.2V (shutdown output; power cycle to recover)
Over-temperature Protection	85C +/-5C (TSW1 detects power transistor heatsink); auto-recovery after temperature drops
Short Circuit Protection	Output shutdown, power cycle to recover
Remote Sense	Via CN4 connector (compensates up to 0.5V line drop per wire)
Operating Temperature	-20~+60C (refer to derating curve)
Operating Humidity	20~90% RH, non-condensing
Storage Temp / Humidity	-40~+85C, 10~95% RH
Temperature Coefficient	+/-0.05%/C (0 ~ 50C)
Vibration Resistance	10~500Hz, 2G, 10 min/cycle, 60 min each for X, Y, Z axes
MTBF	>= 1,529.1K hrs (Telcordia TR/SR-332); >= 204.2K hrs (MIL-HDBK-217F, 25C)
Dimensions	247 x 127 x 63.5 mm (LxWxH)
Net Weight / Packaging	2.1 kg / 6 pcs per carton / 13.4 kg / 1.03 CUFT

Safety Standards & Certifications

Safety Standards	CB IEC62368-1, UL62368-1, UL60950-1 certified KC K60950-1 (12V, 24V only) \| EAC TP TC 004 BIS IS13252(Part1)/IEC60950-1 (except 48V) Design refers to: BS EN/EN62368-1
Withstand Voltage	I/P-O/P: 3KVAC \| I/P-FG: 1.5KVAC \| O/P-FG: 0.5KVAC
Insulation Resistance	I/P-O/P, I/P-FG, O/P-FG: > 100Mohm / 500VDC
EMC Note	Not compliant with BS EN/EN61000-3-2 harmonic current limits. See FAQ for EU usage restrictions.

Key Features

7 Output Voltage Options
5V, 12V, 15V, 24V, 27V, 36V, 48V - including unique 27V for specialized industrial and military equipment

100A at 5V / 500W
Highest 5V current in the SE family - for large digital logic, LED display, and test equipment systems

4.9W/in3 Power Density
Exceptional power density for an enclosed supply - packs 600W into a compact 247x127x63.5mm chassis

Remote Sense (CN4)
Maintains precise load-side voltage regulation - essential for 5V logic and long cable runs

Active Inrush Current Limiting
Reduces startup surge to 30A/115VAC - protects upstream breakers and distribution panels

Broad Global Certifications
CB, UL62368-1, UL60950-1, KC (12V/24V), EAC, BIS (except 48V) - one supply for worldwide use

Built-in DC Fan Cooling
Forced-air cooling enables 600W continuous output across -20~60C ambient

85C Overtemp Protection
TSW1 monitors power transistor heatsink directly - precise thermal protection with auto-recovery

Cost-Effective 600W
Budget-friendly enclosed 600W supply for standard (non-peak-power) industrial applications

2-Year Warranty
Backed by MEAN WELL's quality assurance with global warranty coverage

Frequently Asked Questions

How does the SE-600 differ from the SE-450?

The SE-600 delivers 600W vs 450W - a 33% power increase. Key differences: (1) larger dimensions (247x127x63.5mm vs 225x124x50mm); (2) adds a 27V model not available in SE-450; (3) 100A at 5V vs 75A; (4) wider temperature range (-20C vs -10C minimum); (5) KC certification for Korean market (12V/24V); (6) higher power density (4.9W/in3 vs 3.6W/in3); (7) CB + UL60950-1 certifications; (8) I/P-FG withstand at 1.5KVAC (vs 2KVAC). Choose the SE-600 when you need more power, KC certification, or the unique 27V option.

What makes the 27V model unique?

The SE-600-27 (22.2A / 599.4W) is a rarely available voltage in enclosed power supplies - commonly required by specialized industrial controllers, certain military/aerospace ground equipment, and legacy machinery. It provides 24~30V adjustable range, bridging the gap between standard 24V and 36V rails. If you're replacing a failing 27V supply, the SE-600-27 is often the only enclosed drop-in solution available.

Can the SE-600 be used in EU countries?

The SE-600 is not compliant with BS EN/EN61000-3-2 harmonic current limits. It should NOT be used in end equipment meeting ALL of these conditions: (a) used within the EU, (b) connected to 220VAC+ public mains, (c) installed in equipment with average input power >75W, and (d) part of a lighting system. Professional equipment rated >1,000W and symmetrically controlled heating elements <=200W are exempt.

Is the 48V model BIS-certified for India?

The 48V model is not currently covered under the BIS (IS 13252) certification. All other models (5V, 12V, 15V, 24V, 27V, 36V) are BIS-certified and should be selected for shipments to India.

How do I recover after protection trips?

The SE-600 requires a power cycle (turn off AC, wait, turn on) to recover from overload, overvoltage, and short-circuit protection events. Only over-temperature protection (85C TSW1) auto-recovers. Plan your system design accordingly.

Related Products

Select the SE-600 model that matches your voltage requirement. All seven models feature remote sense (CN4), active inrush current limiting, built-in fan cooling, and CB/UL certification.
