MEAN WELL Power Supply ELGC-300 Series Constant Power LED Driver

Product Item : ELGC-300 series
Category：LED Driver
Wattage: 300W
Input Voltage: 100 ~ 305VAC
Output Current: 1400 ~ 5600mA
OPEN CIRCUIT VOLTAGE (max): 62 ~ 240V
Product description：ELGC-300 series is a 30oW LED AC/DC driver featuring the constant power mode and high voltage output.
INQUIRY EMAIL

ELGC-300 Series - 300W Constant Power LED Driver with Active PFC, IP67, 3 Current Ranges, 3-in-1/DALI-2 Dimming, Type HL

In Stock 5-Year Warranty Constant Power 300W Max IP67 Active PFC Type HL

				Key Performance at a Glance

						300W

						Max Power

						94.5%

						Peak Efficiency

						3

						Current Ranges

						4

						Version Types

						IP67

						Outdoor Rated

						305V

						Max Input

Product Overview

The MEAN WELL ELGC-300 series is a 300W AC-to-DC constant-power LED driver family. It delivers full 300W across 65%~100% of maximum current, then transitions to constant-current mode at lower loads, making it ideal for high-power LED applications such as high-bay, flood, stage, fishing, and horticultural lighting.

It accepts universal 100~305VAC input (142~431VDC) and provides three current-voltage ranges: L-Type 1400mA (116~232V), M-Type 2800mA (58~116V), and H-Type 5600mA (29~58V). With peak efficiency up to 94.5%, the driver uses a fanless design and operates at case temperatures from -40C to +85C under natural convection.

The sealed metal enclosure carries an IP67 rating and is certified to UL8750 Type HL for hazardous location luminaires. Four function versions are available: Blank (fixed output), A (internal potentiometer adjustment), AB (pot adjustment + 3-in-1 dimming), and ADA (DALI-2 digital control).

Protection includes OVP, OTP power derating, short-circuit current limiting, and over-current protection. The driver withstands 6KV line-to-ground and 4KV line-to-line surge, complies with global lighting safety and EMC standards, and is backed by a 5-year warranty.

Product Images

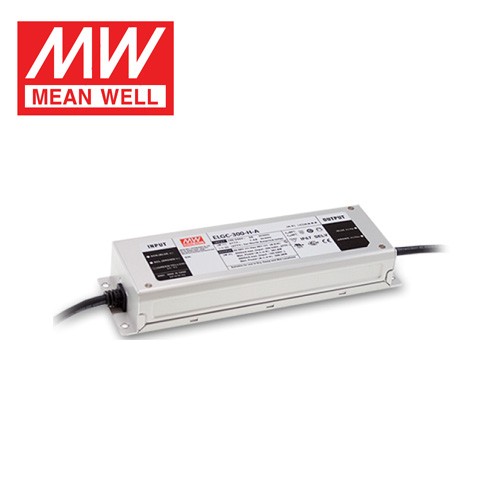

ELGC-300 series LED driver product image

ELGC-300 series LED driver wiring diagram

ELGC-300 series LED driver dimension diagram

Technical Specifications

Output ratings for the ELGC-300 series. All values measured at 230VAC, rated load, 25C unless noted.

Model	Rated Current	CC Range	Open Circuit Voltage	Power (200~305V)	Power (100~180V)	Efficiency
ELGC-300-L	1400mA	116 ~ 232V	240V	301W	256W	94.5%
ELGC-300-M	2800mA	58 ~ 116V	120V	301W	256W	93.5%
ELGC-300-H	5600mA	29 ~ 58V	62V	301W	256W	92.5%

Version Types

Type	IP	Output Power Mode	Dimming	Best For
Blank	IP67	Fixed constant power	None	Simple fixed-output outdoor luminaires
A	IP67	Constant power adjustable via internal pot	None	Luminaires needing output current tuning
AB	IP67	Constant power adjustable + 3-in-1 dimming	0-10Vdc / 10V PWM / resistor	Smart outdoor and indoor lighting
ADA	IP67	DALI-2 controlled constant current	DALI-2 (16 groups / 64 addresses)	Building management integration

Input & Protection (All Versions)

Input Voltage Range	100~305VAC / 142~431VDC \| 47~63Hz
Active PFC / THD / AC Current	PF>=0.97 at 115V, PF>=0.95 at 230V, PF>=0.92 at 277V at full load \| THD<10% (@load>=50%/115V,230V; @load>=75%/277V) \| 3A/115V, 1.6A/230VAC, 1.3A/277V
Inrush / Leakage / Breaker	Cold start 45A (50% Ipeak, twidth=1200us) / 230VAC per NEMA 410 \| 2 units (B-type breaker) or 4 units (C-type breaker) on 16A breaker at 230VAC \| <0.75mA/277VAC
Standby / No-Load	<0.5W standby (AB/ADA dimming OFF)
Protection	OVP: shutdown/restart (model-specific trip range) \| OTP: power derating 6%/C above Tcase 85C+/-5C \| Short circuit: constant current limit auto-recovery \| Current accuracy: +/-5.0%
Surge Immunity	Line-to-ground: 6KV \| Line-to-line: 4KV \| Light industrial per EN61547
Operating / Storage Temp	Tcase=-40~+85C (refer to derating curve) \| Storage -40~+80C \| Temp coefficient +/-0.03%/C (0~60C)
Vibration / Humidity	10~500Hz, 5G, 12min/cycle, X/Y/Z 72min each \| 20~95% RH non-condensing
DALI / Isolation	IEC62386-101/102/207 (ADA type) \| 3.75KVac I/P-O/P, 2KVac I/P-FG, 1.5KVac O/P-FG
EMC Emission / Immunity	EN55015, EN61000-3-2 Class C (>50% load), EN61000-3-3, GB/T17743, GB17625.1, EAC, KC KN15 \| Immunity: EN61000-4-2/3/4/5/6/8/11, EN61547
Lifetime / MTBF / Size	>50,000 hours at Tcase<70C \| 1637.5K hrs (Telcordia SR-332) \| 246 x 77 x 39.5mm \| 1.45kg \| 9pcs/carton / 14kg

Safety Standards & Certifications

Safety Standards	UL8750 (Type HL), CSA C22.2 No. 250.13-12, IEC/BS EN/AS/NZS 61347-1/2-13 independent, BS EN/EN62384, EAC TP TC 004, GB/T19510.1/19510.213, KC61347-1/2-13 \| IP67
Withstand Voltage	I/P-O/P: 3.75KVAC \| I/P-FG: 2.0KVAC \| O/P-FG: 1.5KVAC
Insulation Resistance	I/P-O/P, I/P-FG, O/P-FG: >100M Ohms / 500VDC / 25C / 70% RH
EMC Emissions	BS EN/EN55015, BS EN/EN61000-3-2 Class C (>50% load), BS EN/EN61000-3-3, GB/T17743, GB17625.1, EAC TP TC 020, KC KN15
EMC Immunity	BS EN/EN61000-4-2/3/4/5/6/8/11, BS EN/EN61547, EAC TP TC 020, KC KN15

Key Features

Constant Power Output -- 65%~100% Load Range
ELGC-300 maintains full 300W output across 65%~100% of maximum current, then transitions to constant current below that point. This maximizes LED power while protecting the load.

3 Current Ranges -- L / M / H
Choose ELGC-300-L (1400mA / 116~232V), ELGC-300-M (2800mA / 58~116V), or ELGC-300-H (5600mA / 29~58V) to match different LED string voltages and high-power chip configurations.

4 Version Types -- Blank / A / AB / ADA
Select fixed output (Blank), potentiometer tuning (A), tuning plus 3-in-1 dimming (AB), or DALI-2 control (ADA). All versions carry IP67 sealing for indoor and outdoor use.

IP67 Metal Housing + Type HL
Sealed aluminum housing with UL8750 Type HL certification. Operates at Tcase -40~+85C with natural convection, 5G vibration resistance, and 6KV/4KV surge immunity for harsh environments.

Active PFC + Global Certifications
PF>=0.97 at 115V and THD<10% keep installations compliant with lighting harmonics regulations. UL/CSA/ENEC/EAC/KC/GB certifications enable worldwide deployment.

5-Year Warranty + 100~305VAC Input
Backed by a 5-year warranty. Universal 100~305VAC input covers 100V Japan, 120V North America, 230V Europe, and 277V US industrial circuits.

Frequently Asked Questions

What is the difference between ELGC-300 and ELG-200/240-C?

ELGC-300 is a 300W constant-power LED driver with three current-voltage ranges (L/M/H) and all-IP67 sealing. ELG-200/240-C are constant-current drivers with fixed current ratings per model. ELGC-300 targets higher-power LED high-bay, flood, stage, fishing, and horticultural lighting.

Why does the power drop at 100~180VAC?

ELGC-300 delivers full 301W at 200~305VAC but derates to 256W at 100~180VAC. The lower input voltage limits the PFC boost stage, so full power is only available on 208V, 230V, or 277V grids. For 120V North American or 100V Japanese installations, size your LED load for 256W.

Which version type should I choose?

Blank for simple fixed-output outdoor luminaires. A-Type for fixtures needing current tuning via internal pot. AB-Type for maximum flexibility with both tuning and 3-in-1 dimming. ADA-Type for DALI-2 building management integration. All versions are IP67.

Can ELGC-300 be used for horticultural or stage lighting?

Yes. The high output voltage range (up to 232V on L-Type), natural convection cooling, and wide operating temperature make ELGC-300 suitable for LED high-bay, flood, stage, fishing, and horticultural luminaires.
