171 x 61.5 x 36.8mm Metal Housing | 90~305VAC Universal Input | 12V~54V | CV+CC Output | Active PFC | IP67/IP65 | Type HL | >62,000hrs | 7-Year Warranty

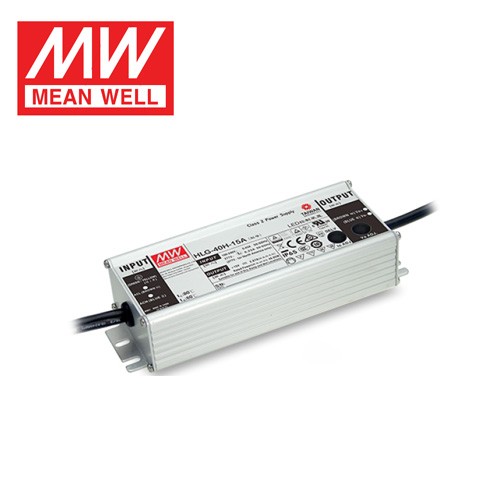

The MEAN WELL HLG-40H series is a 40W AC-to-DC LED driver family featuring both constant-voltage (CV) and constant-current (CC) output modes. It is designed for LED street lights, high-bay fixtures, parking lighting, fishing lights, and greenhouse lighting.
It accepts universal 90~305VAC input (127~431VDC) and provides nine fixed output voltage options: 12V, 15V, 20V, 24V, 30V, 36V, 42V, 48V, and 54V. With peak efficiency up to 89.5%, the driver uses a fanless design and operates at case temperatures from -40C to +80C under natural convection.
The metal enclosure carries IP67 or IP65 ratings depending on the version and is certified to UL8750 Type HL for Class I Division 2 hazardous location luminaires. Five function versions are available: Blank (fixed output, IP67), A (internal potentiometer adjustment, IP65), B (3-in-1 dimming, IP67), AB (pot adjustment + 3-in-1 dimming, IP65), and D (timing dimming, IP67).
Protection includes OVP, OTP, short-circuit hiccup, and over-current constant-current limiting. The driver withstands 4KV line-to-ground and 2KV line-to-line surge, complies with global lighting safety and EMC standards, and is backed by a 7-year warranty.
Output ratings for the HLG-40H series. All values measured at 230VAC, rated load, 25C unless noted.
| Model | DC Voltage | Rated Current | Rated Power | CC Range | Ripple & Noise | Efficiency |
|---|---|---|---|---|---|---|
| HLG-40H-12 | 12V | 3.33A | 39.96W | 7.2 ~ 12V | 150mVp-p | 86.5% |
| HLG-40H-15 | 15V | 2.67A | 40.05W | 9 ~ 15V | 150mVp-p | 86.5% |
| HLG-40H-20 | 20V | 2A | 40W | 12 ~ 20V | 150mVp-p | 88% |
| HLG-40H-24 | 24V | 1.67A | 40.08W | 14.4 ~ 24V | 200mVp-p | 88% |
| HLG-40H-30 | 30V | 1.34A | 40.2W | 18 ~ 30V | 200mVp-p | 88.5% |
| HLG-40H-36 | 36V | 1.12A | 40.32W | 21.6 ~ 36V | 200mVp-p | 88.5% |
| HLG-40H-42 | 42V | 0.96A | 40.32W | 25.2 ~ 42V | 200mVp-p | 88.5% |
| HLG-40H-48 | 48V | 0.84A | 40.32W | 28.8 ~ 48V | 300mVp-p | 89.5% |
| HLG-40H-54 | 54V | 0.75A | 40.5W | 32.4 ~ 54V | 300mVp-p | 89.5% |
| Type | IP | Output Adjustment | Dimming | Best For |
|---|---|---|---|---|
| Blank | IP67 | Fixed CV/CC | None | Simple fixed-output outdoor luminaires |
| A | IP65 | Pot adjustable voltage/current | None | Luminaires needing output tuning |
| B | IP67 | Fixed | 3-in-1 (1-10Vdc / 10V PWM / resistor) | Smart outdoor street/flood lights |
| AB | IP65 | Pot + Dimming | 3-in-1 (1-10Vdc / 10V PWM / resistor) | Maximum flexibility indoor |
| D | IP67 | Timing dimming function | Built-in timing dimming | Street lighting with scheduled dimming |
| Input Voltage Range | 90~305VAC / 127~431VDC | 47~63Hz |
| Active PFC / THD / AC Current | PF>=0.98 at 115V, PF>=0.95 at 230V, PF>=0.92 at 277V at full load | THD<20% (@load>=60%/115V,230V; @load>=75%/277V) | 0.43A/115V, 0.24A/230VAC, 0.23A/277V |
| Inrush / Leakage / Breaker | Cold start 50A (50% Ipeak, twidth=210us) / 230VAC per NEMA 410 | 12 units (B-type breaker) or 20 units (C-type breaker) on 16A breaker at 230VAC | <0.75mA/277VAC |
| Standby / No-Load | Contact MEAN WELL for standby specifications |
| Protection | OVP: shutdown/restart (model-specific trip range) | OTP: shutdown/restart | Short circuit: hiccup auto-recovery | Over current: constant current limit auto-recovery | Current accuracy: +/-5.0% |
| Surge Immunity | Line-to-ground: 4KV | Line-to-line: 2KV | Light industrial per EN61547 |
| Operating / Storage Temp | Tcase=-40~+80C (refer to derating curve) | Storage -40~+80C | Temp coefficient +/-0.03%/C (0~60C) |
| Vibration / Humidity | 10~500Hz, 5G, 12min/cycle, X/Y/Z 72min each | 20~95% RH non-condensing |
| Isolation | 3.75KVac I/P-O/P, 2KVac I/P-FG, 1.5KVac O/P-FG |
| EMC Emission / Immunity | EN55015 Class C (>60% load), EN61000-3-2/3-3, GB/T17743, GB17625.1, KS C 9815, KS C 9547, EAC | Immunity: EN61000-4-2/3/4/5/6/8/11, EN61547, EN55024 |
| Lifetime / MTBF / Size | >62,000 hours at Tcase<75C | 3395.8K hrs (Telcordia SR-332) | 171 x 61.5 x 36.8mm | 0.73kg | 20pcs/carton / 15.6kg |
| Safety Standards | UL8750 (Type HL), CSA C22.2 No. 250.0-08, IEC/BS EN/AS/NZS 61347-1/2-13 independent, GB/T19510.1/19510.213, EAC TP TC 004, KC61347-1/2-13 (except AB-type), J61347-1/2-13 | IP65 or IP67 |
| Withstand Voltage | I/P-O/P: 3.75KVAC | I/P-FG: 2.0KVAC | O/P-FG: 1.5KVAC |
| Insulation Resistance | I/P-O/P, I/P-FG, O/P-FG: >100M Ohms / 500VDC / 25C / 70% RH |
| EMC Emissions | BS EN/EN55015, BS EN/EN61000-3-2 Class C (>60% load), BS EN/EN61000-3-3, GB/T17743, GB17625.1, KS C 9815, KS C 9547, EAC TP TC 020 |
| EMC Immunity | BS EN/EN61000-4-2/3/4/5/6/8/11, BS EN/EN61547, BS EN/EN55024, KS C 9815, KS C 9547, EAC TP TC 020 |
HLG-40H is a CV+CC dual-mode driver with 9 fixed output voltage options (12V~54V), IP67/IP65 sealing, Type HL, and up to 7-year warranty. ELG-40/45 are voltage-output or constant-current drivers with different form factors and feature sets.
Yes. Each voltage model has a specified constant-current range (e.g., 14.4~24V for HLG-40H-24). If the LED string forward voltage falls within that range, the driver operates in constant-current mode. It can also power LED modules with built-in constant-current drivers in constant-voltage mode.
Blank for simple fixed-output outdoor luminaires. A-Type for fixtures needing voltage/current tuning via internal pot. B-Type for smart lighting with 1-10V/PWM/resistor dimming. AB-Type for maximum flexibility with both tuning and dimming. D-Type for timing dimming functions (contact MEAN WELL for details).
Blank, B, and D versions are IP67. A and AB versions are IP65. A/AB types require internal use for Type HL applications.
Explore individual voltage models in the HLG-40H family.
