MEAN WELL Power Supply XDR-120E Series Single Output DIN Rail Mounted

Product Item : XDR-120E series
Category：DIN Rail Power Supplies
Wattage: 120W
Input Voltage: 85 ~ 264VAC
Output Current: 0 ~ 10A
Output Voltage: 12 ~ 48V
Product description：The XDR-120E series is a 120W AC/DC economical ultra slim industrial DIN rail power.
INQUIRY EMAIL

XDR-120E Series - 120W Economy Slim DIN Rail Power Supply

✓ In Stock 3-Year Warranty 30mm Ultra-Slim DC OK Relay Class B EMC OVC III

				Key Performance at a Glance

						120W

						Rated Power

						91%

						Max Efficiency

						30mm

						Width (Ultra-Slim)

						-40~70C

						Operating Temp Range

						4KVac

						I/P-O/P Isolation

						5000m

						Altitude (OVC II)

Product Overview

The XDR-120E series is MEAN WELL's 120W economy slim DIN rail power supply, delivering a best-in-class balance of performance, certifications, and affordability. At just 30mm wide, it packs 120W into a compact chassis that maximizes panel space in crowded control cabinets while meeting global safety and EMC requirements.

The XDR-120E accepts 85~264Vac universal input (also 120~370Vdc), making it deployable worldwide without input switching. Available in four output voltages - 12V, 24V, 36V, and 48V - it delivers up to 10A at 12V and 2.5A at 48V. Efficiency peaks at 91% with ultra-low no-load consumption of 0.6~1W, reducing both energy costs and cabinet heat buildup.

A standout feature in the economy segment is the built-in DC OK relay contact (30Vdc/1A resistive) - enabling remote status monitoring for PLC/SCADA systems without additional hardware. This is paired with OVC III (IEC/EN 61558-1/-2-16 up to 2000m) and OVC II (IEC/EN/UL 61010-1/-2-201 and IEC/EN 62368-1 up to 5000m) overvoltage categories, plus SELV safety classification - providing industrial-grade protection at an economy price point.

The XDR-120E holds CB, TUV, UL/CUL, CCC, BSMI, EAC, KC, and BIS certifications spanning ITE (62368-1), industrial (61558-1/-2-16), and measurement (61010-1/-2-201) standards. With Class B EMC emissions (both conducted and radiated) and heavy industrial immunity (EN61000-6-2), the XDR-120E is qualified for residential, commercial, and light industrial environments where Class A compliance is insufficient.

Product Images

Technical Specifications

Parameter	XDR-120E-12	XDR-120E-24	XDR-120E-36	XDR-120E-48
DC Output Voltage	12V	24V	36V	48V
Rated Current	10A	5A	3.33A	2.5A
Rated Power	120W	120W	119.88W	120W
Ripple & Noise (max)	100mVp-p	120mVp-p	150mVp-p	150mVp-p
Voltage Adjustment Range	12~15V	24~29V	36~42V	48~55V
Voltage Accuracy	+/-2.0%	+/-1.0%	+/-1.0%	+/-1.0%
Line Regulation	+/-0.5%	+/-0.5%	+/-0.5%	+/-0.5%
Load Regulation	+/-1.0%	+/-1.0%	+/-1.0%	+/-1.0%
Efficiency (Typ.)	89%	91%	91%	91%

Input Specifications (All Models)

Input Voltage Range	85~264Vac (universal); 120~370Vdc
Frequency Range	47~63Hz
AC Current (Typ.)	2.3A / 115Vac \| 1.3A / 230Vac
Inrush Current (Typ.)	20A / 115Vac \| 40A / 230Vac (cold start)
No-Load Power (Typ.)	12V/36V: 0.6W@115Vac / 0.9W@230Vac \| 24V/48V: 0.8W@115Vac / 1W@230Vac
Leakage Current	< 1mA / 240Vac
Start-up / Rise Time	1200ms/60ms @ 230Vac; 2500ms/60ms @ 115Vac (full load)
Hold-up Time (Typ.)	16ms / 230Vac \| 8ms / 115Vac (full load)

Protection Features & Environmental Ratings

Overload Protection	105~130% rated power, constant current limiting, auto-recovery after fault removal
Overvoltage Protection	12V: 15~18V / 24V: 30~34V / 36V: 43~50V / 48V: 56~65V (shutdown output, auto-recovery after restart)
Over-temperature Protection	Shutdown output, auto-recovery after fault removal
Short Circuit Protection	Constant current limiting, auto-recovery
DC OK Relay Contact	30Vdc/1A, 30Vac/0.5A resistive load (all models)
Operating Temperature	-40~+70C (derating above 50C; refer to derating curve)
Operating Humidity	20~95% RH, non-condensing
Storage Temp / Humidity	-40~+85C, 10~95% RH, non-condensing
Temperature Coefficient	+/-0.03%/C (0~50C)
Vibration Resistance	10~500Hz, 2G, 10 min/cycle, 60 min each for X, Y, Z axes; IEC60068-2-6
Overvoltage Category	OVC III: IEC/EN 61558-1/-2-16 (up to 2,000m); OVC II: IEC/EN/UL 61010-1/-2-201 & IEC/EN 62368-1 (up to 5,000m)
MTBF	>= 2,223.1K hrs (Telcordia SR-332); >= 440.4K hrs (MIL-HDBK-217F, 25C)

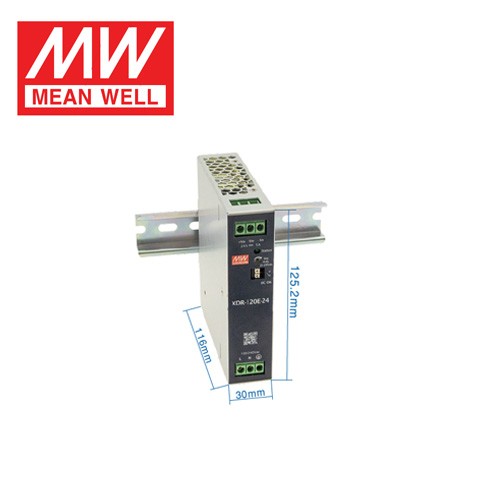

Dimensions	30 x 125.2 x 116 mm (WxHxD)
Net Weight / Packaging	0.51 kg / 24 pcs per carton / 13.25 kg / 1.16 CUFT

Safety Standards & Certifications

Safety Standards	CB: IEC 62368-1, IEC 61558-1/2-16, IEC 61010-1/-2-201 TUV: BS EN/EN 62368-1, BS EN/EN IEC 61558-1/-2-16, BS EN/EN 61010-1/-2-201 UL/CUL: UL 61010-1/-2-201 \| CCC: GB4943.1 BSMI: CNS15598-1 \| EAC: TP TC 004 KC: KC 62368-1 \| BIS: IS 13252 (Part 1) (by request, stock dependent)
SELV Classification	IEC/EN 61558-2-16 (SELV); IEC/EN 62368-1 (SELV/ES1)
Withstand Voltage	I/P-O/P: 4KVac \| I/P-FG: 2KVac \| O/P-FG: 1.5KVac \| O/P-DC OK: 0.5KVac
Insulation Resistance	I/P-O/P, I/P-FG, O/P-FG: > 100Mohm / 500Vdc / 25C / 70% RH
EMC Emissions	BS EN/EN55032 (CISPR32) / BS EN/EN61204-3 / CNS15936 / KS C 9832 - Class B (Conducted + Radiated) Harmonic: BS EN/EN61000-3-2 Class A \| Flicker: BS EN/EN61000-3-3
EMC Immunity	BS EN/EN55035, BS EN/EN61204-3, BS EN/EN61000-6-2 (BS EN/EN50082-2), KS C 9835 ESD: L3 8KV air/L2 4KV contact \| Radiated: L3 10V/m \| EFT: L3 2KV Surge: L4 2KV L-L / L4 4KV L-Earth \| Conducted: L3 10V \| Mag Field: L4 30A/m

Key Features

DC OK Relay Contact (All Models)
Built-in 30Vdc/1A relay for remote status monitoring - enables PLC/SCADA integration without external hardware

30mm Ultra-Slim Design
Narrowest 120W DIN rail power supply - saves 50%+ panel space vs conventional 60mm+ units

OVC III + IEC61010 Triple Standard
Certified to ITE (62368-1), Industrial (61558), and Measurement (61010) standards - one supply for multiple applications

Class B EMC (Conducted + Radiated)
Qualified for residential and commercial environments - no Class A restrictions on deployment location

91% Efficiency + <1W No-Load
Best-in-class economy efficiency reduces heat, energy costs, and cabinet cooling requirements

Constant Current Limiting
Built-in CC circuit safely handles motor starts and capacitive loads - no shutdown on momentary overload

-40~70C Wide Temperature
Reliable cold-start at -40C; full power to 50C with linear derating to 75% at 70C

5000m Altitude (OVC II)
Rated for high-altitude installations per IEC/EN/UL 61010-1/-2-201 and IEC/EN 62368-1

SELV Output (All Models)
Safety Extra Low Voltage per 61558-2-16 and 62368-1 - enhanced operator safety compliance

4KVac I/P-O/P Isolation
Reinforced insulation between primary and secondary - exceeds standard 3KVac requirement for safety-critical applications

Frequently Asked Questions

What makes the XDR-120E different from NDR-120?

The XDR-120E adds: (1) DC OK relay contact on all models for remote monitoring, (2) 4KVac I/P-O/P isolation, (3) OVC III certification, (4) IEC61010 measurement standard, (5) SELV classification, (6) Class B EMC, and (7) -40C minimum operating temperature (vs -20C). The NDR-120 is a basic industrial DIN rail supply; the XDR-120E is an upgraded economy platform with enhanced safety and monitoring at the same 120W level.

What is the difference between XDR-120E and XDR-120?

The XDR-120 is the premium tier with Active PFC (PF>0.98), ORing FET for reverse voltage protection, 200% peak power (240W/5s), 85~305Vac input, 94% efficiency, MODBus/parallel capability, DNV marine, SEMI F47, HazLoc, and 5-year warranty. The XDR-120E is the economy variant: no PFC, no ORing FET, no peak power, 85~264Vac input, 91% efficiency, and 3-year warranty - but retains OVC III, IEC61010, SELV, and DC OK relay at a significantly lower price point.

Does the XDR-120E have DC OK relay on all voltage models?

Yes. All four models (12V, 24V, 36V, and 48V) include a DC OK relay contact rated at 30Vdc/1A or 30Vac/0.5A resistive. This is a key differentiator from NDR series where DC OK is LED-only on some models.

Can the XDR-120E be used in residential environments?

Yes. With Class B conducted and radiated emissions (per CISPR32/EN55032) and harmonic compliance to EN61000-3-2 Class A, the XDR-120E is approved for residential, commercial, and light industrial use - a rare achievement for an economy DIN rail supply at this power level.

Is the BIS certification available for all models?

BIS IS 13252 (Part 1) certification is available by request but may not be stocked at all factories. Contact sales for availability confirmation before ordering for India-bound shipments. KC 62368-1 certification follows the same "by request" policy.
