MEAN WELL Power Supply XDR-150E Series Single Output DIN Rail Mounted

Product Item : XDR-150E series
Category：DIN Rail Power Supplies
Wattage: 150W
Input Voltage: 85 ~ 264VAC
Output Current: 0 ~ 10A
Output Voltage: 12 ~ 48V
Product description：The XDR-150E series is a 150W AC/DC economical ultra slim industrial DIN rail power.
INQUIRY EMAIL

XDR-150E Series - 150W Economy Slim DIN Rail Power Supply

✓ In Stock 3-Year Warranty 30mm Ultra-Slim DC OK Relay Class B EMC OVC III

				Key Performance at a Glance

						156W

						Max Power (230Vac)

						91%

						Max Efficiency

						30mm

						Width (Ultra-Slim)

						-40~70C

						Operating Temp Range

						4KVac

						I/P-O/P Isolation

						5000m

						Altitude (OVC II)

Product Overview

The XDR-150E series is a unique 150W economy slim DIN rail power supply featuring dual power ratings based on input voltage: delivering up to 120~124W at 115Vac and boosting to 132~156W at 230Vac. This dynamic power capability maximizes available wattage when connected to higher mains voltage, making it ideal for international deployments where input voltage can vary.

The XDR-150E accepts 85~264Vac universal input (also 120~370Vdc), deploying worldwide without input switching. Available in four output voltages - 12V, 24V, 36V, and 48V - it delivers up to 11A at 12V (230Vac) and 3.25A at 48V (230Vac). Efficiency peaks at 91% with ultra-low no-load consumption of 0.6~1W.

The built-in DC OK relay contact (30Vdc/1A resistive) enables remote status monitoring for PLC/SCADA systems. This is paired with OVC III (IEC/EN 61558-1/-2-16 up to 2000m) and OVC II (IEC/EN/UL 61010-1/-2-201 and IEC/EN 62368-1 up to 5000m), plus SELV safety classification. The dual-range overload protection adapts to input voltage: 105~130% at 230Vac / 105~150% at 115Vac.

The XDR-150E holds CB, TUV, UL/CUL, CCC, BSMI, EAC, KC, and BIS certifications spanning ITE (62368-1), industrial (61558-1/-2-16), and measurement (61010-1/-2-201). With Class B EMC emissions and heavy industrial immunity (EN61000-6-2), it is qualified for residential through heavy industrial use. Harmonic compliance meets EN61000-3-2 Class A at <= 80% load.

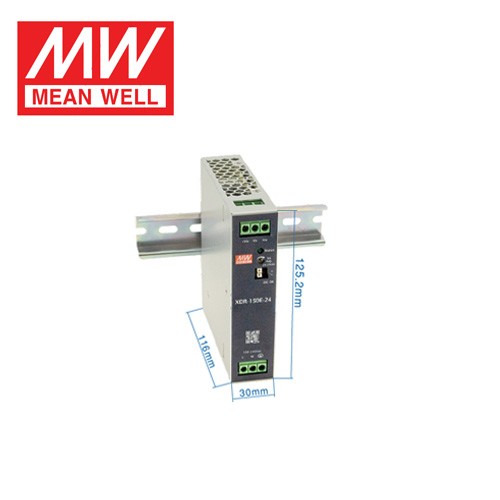

Product Images

Technical Specifications (at 230Vac / 115Vac)

Parameter	XDR-150E-12	XDR-150E-24	XDR-150E-36	XDR-150E-48
DC Output Voltage	12V	24V	36V	48V
Rated Current (230V)	11A	6.5A	4.33A	3.25A
Rated Current (115V)	10A	5.2A	3.46A	2.6A
Rated Power (230V)	132W	156W	155.88W	156W
Rated Power (115V)	120W	124.8W	124.56W	124.8W
Ripple & Noise (max)	100mVp-p	120mVp-p	150mVp-p	200mVp-p
Voltage Adjustment Range	12~15V	24~29V	36~42V	48~55V
Voltage Accuracy	+/-2.0%	+/-1.0%	+/-1.0%	+/-1.0%
Line Regulation	+/-0.5%	+/-0.5%	+/-0.5%	+/-0.5%
Load Regulation	+/-1.0%	+/-1.0%	+/-1.0%	+/-1.0%
Efficiency (Typ.)	89%	91%	91%	91%

Input Specifications (All Models)

Input Voltage Range	85~264Vac (universal); 120~370Vdc
Frequency Range	47~63Hz
AC Current (Typ.)	2.6A / 115Vac \| 1.6A / 230Vac
Inrush Current (Typ.)	20A / 115Vac \| 40A / 230Vac (cold start)
No-Load Power (Typ.)	12V/36V: 0.6W@115Vac / 0.9W@230Vac \| 24V/48V: 0.8W@115Vac / 1W@230Vac
Leakage Current	< 1mA / 240Vac
Start-up / Rise Time	1200ms/60ms @ 230Vac; 2500ms/60ms @ 115Vac (full load)
Hold-up Time (Typ.)	16ms / 230Vac \| 8ms / 115Vac (full load)

Protection Features & Environmental Ratings

Overload Protection	230Vac: 105~130% CC limiting, auto-recovery \| 115Vac: 105~150% CC limiting, auto-recovery (adaptive dual-range)
Overvoltage Protection	12V: 15~18V / 24V: 30~34V / 36V: 43~50V / 48V: 56~65V (shutdown output, auto-recovery after restart)
Over-temperature Protection	Shutdown output, auto-recovery after fault removal
Short Circuit Protection	Constant current limiting, auto-recovery
DC OK Relay Contact	30Vdc/1A, 30Vac/0.5A resistive load (all models)
Operating Temperature	-40~+70C (derating above 50C; note: load reduced to 40% when -40~-20C AND 85~90Vac)
Operating Humidity	20~95% RH, non-condensing
Storage Temp / Humidity	-40~+85C, 10~95% RH, non-condensing
Temperature Coefficient	+/-0.03%/C (0~50C)
Vibration Resistance	10~500Hz, 2G, 10 min/cycle, 60 min each for X, Y, Z axes; IEC60068-2-6
Overvoltage Category	OVC III: IEC/EN 61558-1/-2-16 (up to 2,000m); OVC II: IEC/EN/UL 61010-1/-2-201 & IEC/EN 62368-1 (up to 5,000m)
MTBF	>= 2,201.7K hrs (Telcordia SR-332); >= 440.4K hrs (MIL-HDBK-217F, 25C)
Dimensions	30 x 125.2 x 116 mm (WxHxD)
Net Weight / Packaging	0.51 kg / 24 pcs per carton / 13.25 kg / 1.16 CUFT

Safety Standards & Certifications

Safety Standards	CB: IEC 62368-1, IEC 61558-1/2-16, IEC 61010-1/-2-201 TUV: BS EN/EN 62368-1, BS EN/EN 61558-1/-2-16, BS EN/EN 61010-1/-2-201 UL/CUL: UL 61010-1/-2-201 \| CCC: GB4943.1 BSMI: CNS15598-1 \| EAC: TP TC 004 KC: KC 62368-1 \| BIS: IS 13252 (Part 1) (by request, stock dependent)
SELV Classification	IEC/EN 61558-2-16 (SELV); IEC/EN 62368-1 (SELV/ES1)
Withstand Voltage	I/P-O/P: 4KVac \| I/P-FG: 2KVac \| O/P-FG: 1.5KVac \| O/P-DC OK: 0.5KVac
Insulation Resistance	I/P-O/P, I/P-FG, O/P-FG: > 100Mohm / 500Vdc / 25C / 70% RH
EMC Emissions	BS EN/EN55032 (CISPR32) / BS EN/EN61204-3 / CNS15936 / KS C 9832 - Class B (Conducted + Radiated) Harmonic: BS EN/EN61000-3-2 Class A (<=80% load) \| Flicker: BS EN/EN61000-3-3
EMC Immunity	BS EN/EN55035, BS EN/EN61204-3, BS EN/EN61000-6-2 (BS EN/EN50082-2), KS C 9835 ESD: L3 8KV air/L2 4KV contact \| Radiated: L3 10V/m \| EFT: L3 2KV Surge: L4 2KV L-L / L4 4KV L-Earth \| Conducted: L3 10V \| Mag Field: L4 30A/m

Key Features

Dual Power Rating (115V/230V)
Unique adaptive power design: 120~124W@115Vac boosts to 132~156W@230Vac for maximum flexibility in global deployments

DC OK Relay Contact (All Models)
Built-in 30Vdc/1A relay for remote status monitoring - enables PLC/SCADA integration without external hardware

30mm Ultra-Slim Design
Packs up to 156W in a 30mm-wide chassis - highest power density in its class for space-critical control cabinets

Adaptive Dual-Range Overload
105~130% at 230Vac / 105~150% at 115Vac with constant current limiting - safely handles motor starts at any input voltage

OVC III + IEC61010 Triple Standard
Certified to ITE (62368-1), Industrial (61558), and Measurement (61010) standards - one supply for multiple applications

Class B EMC (Conducted + Radiated)
Qualified for residential and commercial environments - no Class A restrictions on deployment location

91% Efficiency + <1W No-Load
Best-in-class economy efficiency reduces heat, energy costs, and cabinet cooling requirements at 156W output

-40~70C Wide Temperature
Reliable cold-start at -40C; full power to 50C with linear derating; dual-input cold-start derating to 40% load (-40~-20C + 85~90Vac)

5000m Altitude (OVC II)
Rated for high-altitude installations per IEC/EN/UL 61010-1/-2-201 and IEC/EN 62368-1

SELV + 4KVac Isolation
Safety Extra Low Voltage per 61558-2-16 + reinforced 4KVac I/P-O/P - exceeds standard economy-class isolation

Frequently Asked Questions

What is the actual power rating — 120W or 156W?

The XDR-150E has dual power ratings: 120~124.8W at 115Vac and 132~156W at 230Vac depending on the model. The 24V and 48V models deliver 156W at 230Vac — the highest in the class for a 30mm-wide economy DIN rail supply. When selecting, plan based on your local mains voltage: 115V regions get 120~124W, 230V regions get 132~156W.

How does the XDR-150E compare to XDR-120E?

The XDR-150E is the same 30mm chassis but offers higher output at 230Vac: up to 156W vs 120W. XDR-120E has uniform power across all input voltages (full 120W at both 115V and 230V), while XDR-150E scales power with input voltage. Choose XDR-120E for consistent 120W regardless of mains; choose XDR-150E to unlock extra headroom when running on 230Vac.

Is harmonic compliance limited on XDR-150E?

Harmonic compliance (EN61000-3-2 Class A) is met at <= 80% load. For continuous near-full-load operation at 230Vac, verify harmonic requirements for your specific application and region.

Are there cold-start limitations at extreme temperatures?

Yes. When both conditions occur simultaneously — temperature between -40C and -20C AND input voltage between 85Vac and 90Vac — the load must be reduced to 40% of rated power. This is a rare combination but important for outdoor/unheated installations in extremely cold climates with unstable grid voltage.

Can I parallel XDR-150E units for more power?

The XDR-150E is not designed for parallel operation — there is no active current sharing or ORing FET. For applications requiring redundancy or higher total power, consider the premium XDR line with built-in parallel capability.
