MEAN WELL Power Supply XDR-240E Series Single Output DIN Rail Mounted

Product Item : XDR-240E series
Category：DIN Rail Power Supplies
Wattage: 240W
Input Voltage: 85 ~ 264VAC
Output Current: 0 ~ 20A
Output Voltage: 12 ~ 48V
Product description：The XDR-240E series is a 240W AC/DC economical ultra slim industrial DIN rail power.
INQUIRY EMAIL

XDR-240E Series - 240W Economy Slim DIN Rail Power Supply with Active PFC

✓ In Stock 3-Year Warranty Active PFC DC OK Relay Class B EMC OVC III

				Key Performance at a Glance

						240W

						Rated Power (Unified)

						95.5%

						Max Efficiency

						40mm

						Width (Slim)

						20ms

						Hold-up (115V/230V)

						PF>0.98

						Active PFC (115Vac)

						5000m

						Altitude (OVC II)

Product Overview

The XDR-240E series is the first economy XDR-E model to integrate Active PFC (PF>0.98@115Vac / PF>0.95@230Vac), delivering a full 240W unified output across all four voltages with exceptional 95.5% peak efficiency. At 40mm wide, it packs PFC + 240W into a compact chassis that maximizes panel space while meeting global safety and EMC requirements.

The XDR-240E accepts 85~264Vac universal input (also 120~370Vdc). Available in four output voltages - 12V, 24V, 36V, and 48V - it delivers up to 20A at 12V and 5A at 48V, all at a clean 240W unified rating regardless of input voltage. Efficiency ranges from 94% to 95.5% — a massive leap over the 89~91% of non-PFC XDR-E models.

The hold-up time of 20ms at both 115V and 230V is a standout feature — extended hold-up is maintained even at 115Vac where most PFC-free supplies drop to 8~10ms. Overload protection introduces a smart dual-mode: hiccup mode below 30% of rated voltage (safe for short circuits) and constant current limiting above 30% (safe for motor starts and capacitive loads).

The built-in DC OK relay contact (30Vdc/1A), OVC III (IEC/EN 61558), OVC II (IEC/EN/UL 61010 & 62368-1 up to 5,000m), SELV safety classification, and 4KVac I/P-O/P isolation remain standard. Full global certifications include CB, TUV, UL/CUL, CCC, BSMI, EAC, KC, and BIS. Harmonic compliance meets EN61000-3-2 Class A (full compliance without load restrictions, thanks to Active PFC).

Product Images

Technical Specifications

Parameter	XDR-240E-12	XDR-240E-24	XDR-240E-36	XDR-240E-48
DC Output Voltage	12V	24V	36V	48V
Rated Current	20A	10A	6.66A	5A
Rated Power	240W	240W	240W	240W
Ripple & Noise (max)	100mVp-p	100mVp-p	120mVp-p	150mVp-p
Voltage Adjustment Range	12~15V	24~29V	36~42V	48~55V
Voltage Accuracy	+/-2.0%	+/-1.0%	+/-1.0%	+/-1.0%
Line Regulation	+/-0.5%	+/-0.5%	+/-0.5%	+/-0.5%
Load Regulation	+/-1.0%	+/-1.0%	+/-1.0%	+/-1.0%
Efficiency (Typ.)	94%	95.2%	95.5%	95.5%

Input Specifications (All Models)

Input Voltage Range	85~264Vac (universal); 120~370Vdc
Frequency Range	47~63Hz
Power Factor (Typ.)	PF>0.95/230Vac \| PF>0.98/115Vac (full load) — Active PFC (65KHz)
AC Current (Typ.)	2.6A / 115Vac \| 1.3A / 230Vac
Inrush Current (Typ.)	15A / 115Vac \| 30A / 230Vac (cold start)
No-Load Power (Typ.)	12V/24V: 1W @ 115Vac & 230Vac \| 36V/48V: 1.2W @ 115Vac & 230Vac
Leakage Current	< 1mA / 240Vac
Start-up / Rise Time	1200ms/60ms @ 230Vac; 2500ms/150ms @ 115Vac (full load)
Hold-up Time (Typ.)	20ms / 230Vac \| 20ms / 115Vac (full load) — maintained at both voltages

Protection Features & Environmental Ratings

Overload Protection	105~130% rated power; Smart dual-mode: hiccup below 30% Vo / constant current limiting at 30~100% Vo, auto-recovery
Overvoltage Protection	12V: Max 18V / 24V: Max 35V / 36V: Max 50V / 48V: Max 63V (hiccup mode, auto-recovery)
Over-temperature Protection	Shutdown output, auto-recovery after temperature drops
Short Circuit Protection	Hiccup mode, auto-recovery after fault removal
DC OK Relay Contact	30Vdc/1A, 30Vac/0.5A resistive load (all models)
Operating Temperature	-40~+70C (derating above 50C; refer to derating curve)
Operating Humidity	20~95% RH, non-condensing
Storage Temp / Humidity	-40~+85C, 10~95% RH, non-condensing
Temperature Coefficient	+/-0.03%/C (0~50C)
Vibration Resistance	10~500Hz, 2G, 10 min/cycle, 60 min each for X, Y, Z axes; IEC60068-2-6
Overvoltage Category	OVC III: IEC/EN 61558-1/-2-16 (up to 2,000m); OVC II: IEC/EN/UL 61010-1/-2-201 & IEC/EN 62368-1 (up to 5,000m)
MTBF	>= 1,723.2K hrs (Telcordia SR-332); >= 324.4K hrs (MIL-HDBK-217F, 25C)

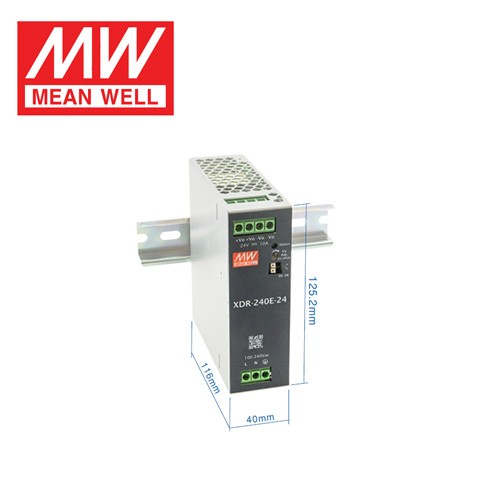

Dimensions	40 x 125.2 x 116 mm (WxHxD)
Net Weight / Packaging	0.61 kg / 16 pcs per carton / 12.2 kg / 1.27 CUFT

Safety Standards & Certifications

Safety Standards	CB: IEC 62368-1, IEC 61558-1/2-16, IEC 61010-1/-2-201 TUV: BS EN/EN 62368-1, BS EN/EN 61558-1/-2-16, BS EN/EN 61010-1/-2-201 UL/CUL: UL 61010-1/-2-201 \| CCC: GB4943.1 BSMI: CNS15598-1 \| EAC: TP TC 004 KC: KC 62368-1 \| BIS: IS 13252 (Part 1) (by request, stock dependent)
SELV Classification	IEC/EN 61558-2-16 (SELV); IEC/EN 62368-1 (SELV/ES1)
Withstand Voltage	I/P-O/P: 4KVac \| I/P-FG: 2KVac \| O/P-FG: 1.5KVac \| O/P-DC OK: 0.5KVac
Insulation Resistance	I/P-O/P, I/P-FG, O/P-FG: > 100Mohm / 500Vdc / 25C / 70% RH
EMC Emissions	BS EN/EN55032 (CISPR32) / BS EN/EN61204-3 / CNS15936 / KS C 9832 - Class B (Conducted + Radiated) Harmonic: BS EN/EN61000-3-2 Class A (full compliance, Active PFC) \| Flicker: BS EN/EN61000-3-3
EMC Immunity	BS EN/EN55035, BS EN/EN61204-3, BS EN/EN61000-6-2 (BS EN/EN50082-2), KS C 9835 ESD: L3 8KV air/L2 4KV contact \| Radiated: L3 10V/m \| EFT: L3 2KV Surge: L4 2KV L-L / L4 4KV L-Earth \| Conducted: L3 10V \| Mag Field: L4 30A/m

Key Features

Active PFC (PF>0.98)
First XDR-E with built-in Active PFC — full harmonic compliance (Class A, no load restrictions), reduced mains current draw, and global grid compliance

95.5% Peak Efficiency
Industry-leading efficiency for an economy DIN rail supply — dramatically reduces heat, energy costs, and cabinet cooling demands at 240W

20ms Hold-up at 115V AND 230V
PFC-stabilized bus voltage maintains 20ms hold-up even at 115Vac — vs. 8~10ms on non-PFC models — critical for brownout ride-through

Smart Dual-Mode Overload
Hiccup mode below 30% Vo for safe short-circuit handling + CC limiting at 30~100% Vo for motor inrush — no nuisance shutdowns

240W Unified Power
Full 240W across all four voltages at all input voltages — no dual-rating derating like XDR-150E, thanks to Active PFC

DC OK Relay Contact (All Models)
Built-in 30Vdc/1A relay for remote PLC/SCADA status monitoring without external hardware

40mm Slim with PFC
Packs 240W + Active PFC in just 40mm width — exceptional power density for a PFC-equipped economy supply

OVC III + IEC61010 + SELV
Triple safety standard certified (ITE + Industrial + Measurement) with 4KVac isolation and 5,000m altitude rating

Class B EMC + Full Harmonic
Qualified for residential and commercial use with no harmonic load restrictions — Active PFC ensures Class A compliance at any load

Hiccup-Mode OVP
OVP uses hiccup mode with auto-recovery — no need to cycle power after a voltage fault, unlike shutdown-based OVP on lower models

Frequently Asked Questions

What does Active PFC do and why does it matter?

Active PFC (Power Factor Correction) improves the power factor to >0.98, meaning the power supply draws current more efficiently from the mains. Benefits include: (1) full EN61000-3-2 harmonic compliance without load restrictions (vs. non-PFC XDR-E models with 80% limits), (2) 20ms hold-up maintained at 115Vac (non-PFC drops to 8ms), (3) lower AC input current (2.6A vs more for non-PFC at same wattage), and (4) reduced stress on upstream circuit breakers and facility wiring.

How does XDR-240E compare to XDR-150E?

The XDR-240E represents a major platform upgrade: (1) Active PFC added, (2) 240W unified power vs dual 120~156W rating, (3) 94~95.5% efficiency vs 89~91%, (4) 20ms hold-up at both 115V and 230V vs 16ms/8ms, (5) hiccup-mode OVP vs shutdown OVP, (6) smart dual-mode overload, (7) 40mm width vs 30mm to accommodate PFC components. If you need PFC, higher efficiency, or 240W unified power, the XDR-240E is the clear choice.

What is the smart dual-mode overload protection?

At overload (105~130%): if output voltage stays above 30% of rated — the supply uses constant current limiting (safe for motor starts). If voltage drops below 30% — it switches to hiccup mode (safe for dead shorts, minimizes power dissipation). This is smarter than fixed CC or fixed hiccup because it adapts to the fault type automatically.

Is the hold-up time really 20ms at 115Vac?

Yes. This is a direct benefit of the Active PFC stage — the PFC boosts and stabilizes the internal DC bus voltage, allowing the PWM stage to maintain output regulation for a full 20ms during a brownout at 115Vac input. Non-PFC supplies typically drop to 8~10ms at 115V. This is critical for PLC and SCADA systems that cannot tolerate momentary power loss.

Can I use XDR-240E in systems that require EN61000-3-2 compliance?

Yes. Unlike lower XDR-E models that have harmonic compliance restrictions (e.g., <=80% load for Class A), the XDR-240E's Active PFC ensures full EN61000-3-2 Class A compliance at all load levels from 0-100%. This makes it suitable for EU applications where harmonic current standards are strictly enforced.

Related Products

All four models feature Active PFC, 240W unified power, 95.5% peak efficiency, DC OK relay, 20ms hold-up, OVC III, IEC61010, SELV, and Class B EMC in a 40mm slim DIN rail package.
