MEAN WELL Power Supply XDR-480E Series Single Output DIN Rail Mounted

Product Item : XDR-480E series
Category：DIN Rail Power Supplies
Wattage: 480W
Input Voltage: 85 ~ 264VAC
Output Current: 0 ~ 30A
Output Voltage: 12 ~ 48V
Product description：The XDR-480E series is a 480W AC/DC economical ultra slim industrial DIN rail power.
INQUIRY EMAIL

XDR-480E Series - 480W Economy Slim DIN Rail Power Supply with Active PFC & Parallel

✓ In Stock 3-Year Warranty Active PFC Parallel 1920W Class B EMC 96% Efficiency

				Key Performance at a Glance

						480W

						Rated Power

						1920W

						Parallel Max (3+1)

						96%

						Max Efficiency

						48mm

						Width (Slim)

						PF>0.98

						Active PFC

						15ms

						Hold-up (115V/230V)

Product Overview

The XDR-480E series is the flagship of the XDR-E economy family, delivering 480W with Active PFC and a game-changing feature: built-in parallel capability up to 1920W (3+1 units). With 96% peak efficiency, it sets a new benchmark for economy DIN rail power supplies in power density, scalability, and thermal performance.

The XDR-480E accepts 85~264Vac universal input (also 120~370Vdc) with Active PFC (PF>0.98@115Vac / PF>0.95@230Vac). Available in four output voltages - 12V (360W derated), 24V, 36V, and 48V - it delivers up to 30A at 12V and 10A at 48V. The paralleling via P_LINK pin uses droop-mode current sharing: simply short the P_LINK pins on up to 4 units to scale to 1920W with automatic, no-configuration load balancing.

Efficiency peaks at an extraordinary 96% (48V model) — the highest in any economy DIN rail supply. The 15ms hold-up time is maintained at both 115V and 230Vac thanks to the PFC-stabilized bus. Overload protection uses the same smart dual-mode (hiccup below 30%Vo, CC limiting above) with auto-recovery. The parallel operation includes built-in protection: output voltage droops ~4% (12V: ~8%) from no-load to full load for natural current sharing, and all units must be restarted after a parallel overload or short-circuit event.

The built-in DC OK relay contact, OVC III, SELV, 4KVac I/P-O/P isolation, and full global certifications (CB/TUV/UL/CUL/CCC/BSMI/EAC/KC/BIS) remain standard. At 48x125.2x125mm, the XDR-480E is slightly deeper than the 240E to accommodate the higher power density, but maintains the same slim front profile with fanless convection cooling.

Product Images

Technical Specifications

Parameter	XDR-480E-12	XDR-480E-24	XDR-480E-36	XDR-480E-48
DC Output Voltage	12V	24V	36V	48V
Rated Current	30A	20A	13.3A	10A
Rated Power	360W *	480W	478.8W	480W
Ripple & Noise (max)	100mVp-p	120mVp-p	150mVp-p	150mVp-p
Voltage Adjustment Range	12~15V	24~29V	36~42V	48~55V
Voltage Accuracy	+/-2.0%	+/-1.0%	+/-1.0%	+/-1.0%
Line Regulation	+/-0.5%	+/-0.5%	+/-0.5%	+/-0.5%
Load Regulation	+/-1.0%	+/-1.0%	+/-1.0%	+/-1.0%
Efficiency (Typ.)	94%	95.5%	95.5%	96%

Input Specifications (All Models)

Input Voltage Range	85~264Vac (universal); 120~370Vdc
Frequency Range	47~63Hz
Power Factor (Typ.)	PF>0.95/230Vac \| PF>0.98/115Vac (full load) — Active PFC (65KHz)
AC Current (Typ.)	6A / 115Vac \| 3A / 230Vac
Inrush Current (Typ.)	15A / 115Vac \| 30A / 230Vac (cold start)
No-Load Power (Typ.)	12V/24V: 1W @ 115Vac & 230Vac \| 36V/48V: 1.2W @ 115Vac & 230Vac
Leakage Current	< 1mA / 240Vac
Start-up / Rise Time	1500ms/150ms @ 230Vac; 3000ms/150ms @ 115Vac (full load)
Hold-up Time (Typ.)	15ms / 230Vac \| 15ms / 115Vac (full load) — uniform at both voltages

Protection Features & Environmental Ratings

Overload Protection	105~130% rated power; Smart dual-mode: hiccup below 30% Vo / constant current at 30~100% Vo, auto-recovery
Overvoltage Protection	12V: Max 18V / 24V: Max 35V / 36V: Max 50V / 48V: Max 63V (hiccup mode, auto-recovery)
Over-temperature Protection	Shutdown output, auto-recovery after temperature drops
Short Circuit Protection	Hiccup mode, auto-recovery after fault removal
Parallel Operation	Droop-mode current sharing via P_LINK pin; up to 1920W (3+1 units); output derated to 90% per unit; min 7% total load; restart required after parallel OLP/SCP
DC OK Relay Contact	30Vdc/1A, 30Vac/0.5A resistive load (all models)
Operating Temperature	-40~+70C (full power to 50C, linear derating to 75% at 70C)
Operating Humidity	20~95% RH, non-condensing
Storage Temp / Humidity	-40~+85C, 10~95% RH, non-condensing
Temperature Coefficient	+/-0.03%/C (0~50C)
Vibration Resistance	10~500Hz, 2G, 10 min/cycle, 60 min each for X, Y, Z axes; IEC60068-2-6
Overvoltage Category	OVC III: IEC/EN 61558-1/-2-16 (up to 2,000m); OVC II: IEC/EN/UL 61010-1/-2-201 & IEC/EN 62368-1 (up to 5,000m)
MTBF	>= 1,482.0K hrs (Telcordia SR-332); >= 258.3K hrs (MIL-HDBK-217F, 25C)

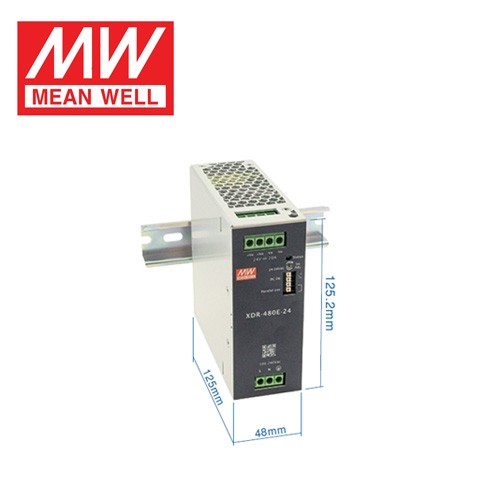

Dimensions	48 x 125.2 x 125 mm (WxHxD)
Net Weight / Packaging	0.89 kg / 12 pcs per carton / 13 kg / 1.16 CUFT

Safety Standards & Certifications

Safety Standards	CB: IEC 62368-1, IEC 61558-1/2-16, IEC 61010-1/-2-201 TUV: BS EN/EN 62368-1, BS EN/EN 61558-1/-2-16, BS EN/EN 61010-1/-2-201 UL/CUL: UL 61010-1/-2-201 \| CCC: GB4943.1 BSMI: CNS15598-1 \| EAC: TP TC 004 KC: KC 62368-1 \| BIS: IS 13252 (Part 1) (by request, stock dependent)
SELV Classification	IEC/EN 61558-2-16 (SELV); IEC/EN 62368-1 (SELV/ES1)
Withstand Voltage	I/P-O/P: 4KVac \| I/P-FG: 2KVac \| O/P-FG: 1.5KVac \| O/P-DC OK: 0.5KVac
Insulation Resistance	I/P-O/P, I/P-FG, O/P-FG: > 100Mohm / 500Vdc / 25C / 70% RH
EMC Emissions	BS EN/EN55032 (CISPR32) / BS EN/EN61204-3 / CNS15936 / KS C 9832 - Class B (Conducted + Radiated) Harmonic: BS EN/EN61000-3-2 Class A (full, Active PFC) \| Flicker: BS EN/EN61000-3-3
EMC Immunity	BS EN/EN55035, BS EN/EN61204-3, BS EN/EN61000-6-2, KS C 9835 ESD: L3 8KV air/L2 4KV contact \| Radiated: L3 10V/m \| EFT: L3 2KV Surge: L4 2KV L-L / L4 4KV L-Earth \| Conducted: L3 10V \| Mag Field: L4 30A/m

Key Features

Parallel to 1920W (3+1)
Built-in droop-mode current sharing via P_LINK pin — simply short the pin to parallel up to 4 units for 1920W total, no external controllers needed

96% Peak Efficiency
Highest efficiency ever in an economy DIN rail supply — 48V model hits 96%, dramatically reducing heat and energy costs at 480W

Active PFC (PF>0.98)
Full harmonic compliance (Class A, no load restrictions) with 15ms hold-up at any input voltage — ready for any global grid

Smart Dual-Mode Overload
Hiccup below 30% Vo for shorts + CC limiting above for motor inrush — adapts to fault type, auto-recovers

DC OK Relay + Parallel Control
4-pin control terminal: DC OK relay (pins 1-2) + P_LINK parallel enable (pins 3-4) — full system monitoring and scaling

48mm Slim + Fanless 480W
Delivers 480W from a 48mm-wide passively cooled chassis — zero noise, zero fan maintenance at near-half-kilowatt output

OVC III + IEC61010 + SELV
Triple safety certification with 4KVac isolation and 5,000m altitude — the most certified high-power economy DIN supply

Hiccup-Mode OVP with Auto-Recovery
OVP uses hiccup mode — recovers automatically after fault clears, no manual power cycle needed

Class B EMC + Full Harmonic
Qualified for residential and commercial use at 480W — Class B emissions + Class A harmonic without load restrictions

Global Certifications
CB/TUV/UL/CUL/CCC/BSMI/EAC/KC/BIS across 62368-1 + 61558-1/2-16 + 61010-1/-2-201 — deploy anywhere

Frequently Asked Questions

How does the parallel operation work?

The XDR-480E uses droop-mode current sharing via the P_LINK pins (pins 3-4 on the control terminal). Simply short the P_LINK pins on all units to be paralleled. Key specifications: (1) output voltage difference between units must be <0.1V, (2) total current = rated current x units x 0.9, (3) maximum 4 units (1920W), (4) minimum total load >7% of total rated current, (5) output voltage droops ~4% from no-load to full load (12V: ~8%), (6) after overload/short-circuit in parallel mode, all units must be restarted.

Why is the 12V model rated at only 360W?

The 12V model delivers 30A which is 360W — this is a thermal derating limitation at 12V output in the 48mm chassis. If you need full 480W at 12V, consider paralleling two XDR-480E-12 units for 720W total capacity.

How does XDR-480E compare to XDR-240E?

The XDR-480E doubles the power (480W vs 240W), adds parallel capability (1920W), boosts efficiency (96% vs 95.5%), and uses a slightly larger chassis (48x125x125mm vs 40x116mm). The 480E is the choice when you need >240W per DIN slot or future scalability via paralleling. Both share the same Active PFC, smart overload, DC OK relay, and triple safety certification platform.

Can I mix different voltage models in parallel?

No. All paralleled units must be the same voltage model and have output voltages calibrated to within 0.1V of each other. Mixing different voltages will damage the units.

What happens if the parallel load is below 7%?

If total parallel load falls below 7% of total rated current, only one unit (the "master") may remain active while others enter standby. In standby, the slave units' output LEDs and DC OK relays will not operate. Load must exceed 7% for all units to share current normally.
