MEAN WELL Power Supply XDR-960E Series Single Output DIN Rail Mounted

Product Item : XDR-960E series
Category：DIN Rail Power Supplies
Wattage: 960W
Input Voltage: 180 ~ 264VAC
Output Current: 0 ~ 40A
Output Voltage: 24 ~ 48V
Product description：The XDR-960E series is a 960W AC/DC economical ultra slim industrial DIN rail power.
INQUIRY EMAIL

XDR-960E Series - 960W Economy Slim DIN Rail Power Supply with PFC & Parallel 3840W

✓ In Stock 3-Year Warranty Parallel 3840W Active PFC Class B EMC 230V Only

				Key Performance at a Glance

						960W

						Rated Power

						3840W

						Parallel Max (3+1)

						95.5%

						Max Efficiency

						96mm

						Width (Slim)

						40A

						Max Current (24V)

						15ms

						Hold-up (230Vac)

Product Overview

The XDR-960E series is the absolute flagship of the XDR-E family — a near-kilowatt 960W economy DIN rail power supply with Active PFC and massive 3840W (3+1) parallel scalability. Designed for 230Vac-only industrial environments, it delivers unprecedented power density in a 96mm-wide fanless chassis.

⚠ Important: 180~264Vac input only — NOT compatible with 115Vac mains. The XDR-960E is a 230V-only platform optimized for high-power industrial and infrastructure applications where 115V is not available. Available in three output voltages - 24V (40A/960W), 36V (26.6A/957.6W), and 48V (20A/960W) — there is no 12V model. Efficiency ranges from 94.5% to 95.5% with Active PFC (PF>0.95).

The built-in parallel capability via P_LINK uses the same proven droop-mode current sharing as XDR-480E, scaling to an astonishing 3840W with 4 units. The 6-pin output terminal block (3x+/3x-) supports heavy 8 AWG wiring for the massive current levels. OVP protection uses shutdown mode requiring a restart (not hiccup auto-recovery like 480E), reflecting the higher-power safety requirements at this wattage level.

The XDR-960E holds full global certifications (CB/TUV/UL/CUL/CCC/BSMI/EAC/KC/BIS), triple safety standards (62368-1 + 61558-1/2-16 + 61010-1/-2-201), DC OK relay, OVC III, SELV, 4KVac isolation, and Class B EMC. At 96x125.2x132mm and 1.93kg, it maintains fanless convection cooling across -40C to +70C with 5,000m altitude.

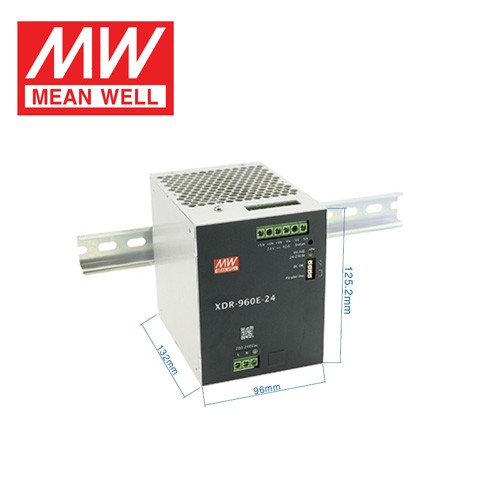

Product Images

Technical Specifications (230Vac Input)

Parameter	XDR-960E-24	XDR-960E-36	XDR-960E-48
DC Output Voltage	24V	36V	48V
Rated Current	40A	26.6A	20A
Rated Power	960W	957.6W	960W
Ripple & Noise (max)	120mVp-p	150mVp-p	150mVp-p
Voltage Adjustment Range	24~29V	36~42V	48~55V
Voltage Accuracy	+/-1.0%	+/-1.0%	+/-1.0%
Line Regulation	+/-0.5%	+/-0.5%	+/-0.5%
Load Regulation	+/-1.0%	+/-1.0%	+/-1.0%
Efficiency (Typ.)	94.5%	95%	95.5%

Input Specifications (All Models — 230V Only)

Input Voltage Range	180~264Vac (230V only — NOT compatible with 115Vac); 254.5~370Vdc
Frequency Range	47~63Hz
Power Factor (Typ.)	PF>0.95/230Vac (full load) — Active PFC (65KHz)
AC Current (Typ.)	5A / 230Vac
Inrush Current (Typ.)	30A / 230Vac (cold start)
No-Load Power (Typ.)	3.9W @ 230Vac
Leakage Current	< 3.5mA / 240Vac
Start-up / Rise Time	500ms/50ms @ 230Vac (full load)
Hold-up Time (Typ.)	15ms / 230Vac (full load)

Protection Features & Environmental Ratings

Overload Protection	105~130% rated power; Smart dual-mode: hiccup below 30% Vo / constant current at 30~100% Vo, auto-recovery
Overvoltage Protection	24V: 30~34V / 36V: 43~50V / 48V: 56~65V (shutdown output, auto-recovery after restart)
Over-temperature Protection	Shutdown output, auto-recovery after temperature drops
Short Circuit Protection	Hiccup mode, auto-recovery after fault removal
Parallel Operation	Droop-mode current sharing via P_LINK pin; up to 3840W (3+1 units); output derated to 90% per unit; min 7% total load; restart required after parallel OLP/SCP; Vo droop ~4% NL-FL
DC OK Relay Contact	30Vdc/1A, 30Vac/0.5A resistive load (all models)
Operating Temperature	-40~+70C (full power to +50C; derating to 70% at 70C)
Operating Humidity	20~95% RH, non-condensing
Storage Temp / Humidity	-40~+85C, 10~95% RH, non-condensing
Temperature Coefficient	+/-0.03%/C (0~50C)
Vibration Resistance	10~500Hz, 2G, 10 min/cycle, 60 min each for X, Y, Z axes; IEC60068-2-6
Overvoltage Category	OVC III: IEC/EN 61558-1/-2-16 (up to 2,000m); OVC II: IEC/EN/UL 61010-1/-2-201 & IEC/EN 62368-1 (up to 5,000m)
MTBF	>= 1,147.2K hrs (Telcordia SR-332); >= 169.9K hrs (MIL-HDBK-217F, 25C)
Dimensions	96 x 125.2 x 132 mm (WxHxD)
Output Terminals / Weight	6-pin (3x+/3x-), supports 18~8 AWG / 1.93 kg / 6 pcs per carton / 12.55 kg / 1.47 CUFT

Safety Standards & Certifications

Safety Standards	CB: IEC 62368-1, IEC 61558-1/2-16, IEC 61010-1/-2-201 TUV: BS EN/EN 62368-1, BS EN/EN 61558-1/-2-16, BS EN/EN 61010-1/-2-201 UL/CUL: UL 61010-1/-2-201 \| CCC: GB4943.1 BSMI: CNS15598-1 \| EAC: TP TC 004 KC: KC 62368-1 \| BIS: IS 13252 (Part 1) (by request, stock dependent)
SELV Classification	IEC/EN 61558-2-16 (SELV); IEC/EN 62368-1 (SELV/ES1)
Withstand Voltage	I/P-O/P: 4KVac \| I/P-FG: 2KVac \| O/P-FG: 1.5KVac \| O/P-DC OK: 0.5KVac
Insulation Resistance	I/P-O/P, I/P-FG, O/P-FG: > 100Mohm / 500Vdc / 25C / 70% RH
EMC Emissions	BS EN/EN55032 (CISPR32) / BS EN/EN61204-3 / CNS15936 / KS C 9832 - Class B (Conducted + Radiated) Harmonic: BS EN/EN61000-3-2 Class A (full, Active PFC) \| Flicker: BS EN/EN61000-3-3
EMC Immunity	BS EN/EN55035, BS EN/EN61204-3, BS EN/EN61000-6-2, KS C 9835 ESD: L3 8KV air/L2 4KV contact \| Radiated: L3 10V/m \| EFT: L3 2KV Surge: L4 2KV L-L / L4 4KV L-Earth \| Conducted: L3 10V \| Mag Field: L4 30A/m

Key Features

960W Single Unit — 3840W Parallel
Near-kilowatt output from a single fanless unit; droop-mode parallel scales to 3840W (3+1) via simple P_LINK jumper

230V-Only Platform — Optimized
180~264Vac input range optimized for 230V industrial grids — eliminates 115V support overhead for maximum efficiency and power density

40A at 24V — 6-Pin Output Terminal
Massive 24V/40A output with 3x+/3x- terminals supporting 8 AWG wire — powers entire production lines from one unit

Active PFC (PF>0.95) + Full Harmonic
Complete EN61000-3-2 Class A at all loads with 15ms hold-up — industrial-grade power quality at 960W output

95.5% Efficiency Fanless at 960W
Kilowatt-class output without fans — silent, zero-maintenance, reduced HVAC load in high-density equipment rooms

Smart Dual-Mode Overload
Hiccup below 30% Vo for shorts + CC limiting above for motor inrush — adaptive protection at near-kilowatt power levels

DC OK + P_LINK 4-Pin Control
Remote status monitoring + parallel enable from one terminal — clean integration for large-scale industrial DC distribution

OVC III + IEC61010 + SELV + 4KVac
Triple safety certification with reinforced isolation — deploy 960W anywhere from factory floor to laboratory

96mm Slim + Fanless Design
960W from a 96mm-wide passively cooled chassis — highest power density in the economy DIN rail segment

9 Global Certifications
CB/TUV/UL/CUL/CCC/BSMI/EAC/KC/BIS across all three safety standards — deploy worldwide without recertification

Frequently Asked Questions

⚠ Can I use XDR-960E on 115Vac mains?

No. The XDR-960E input range is 180~264Vac only. It will not start or operate at 115Vac. This is an intentional design choice to maximize efficiency and power density for 230V industrial environments. For 115V/230V universal input at similar power levels, consider the XDR-480E (480W) or paralleling multiple XDR-480E units.

How does the parallel operation handle such high currents?

Same droop-mode principle as XDR-480E, but with 6-pin output terminals (3x+/3x-) supporting 8 AWG wire. With 4 units paralleled for 3840W, total output current can reach 160A at 24V. Use short, thick bus bars or cables, keep voltage drop minimal, and ensure <0.1V difference between units.

How does XDR-960E differ from XDR-960 (premium)?

The XDR-960 (premium) adds: MODBus RS-485, diagnostic LED, 96% efficiency, ORing FET, 200% peak power, DNV/SEMI/HazLoc, GL wall-mount, and 5-year warranty. The XDR-960E (economy) simplifies to: PFC + parallel + DC OK + OVC III + IEC61010 — the essential features at a significantly lower price. Both use the same 96mm 960W platform.

Why is OVP shutdown instead of hiccup mode?

At near-kilowatt power levels, a hiccup-mode OVP could cycle large currents through the protection circuitry, creating thermal stress. The XDR-960E uses shutdown-mode OVP (restart to recover) as a safer approach for high-power operation. This is a deliberate design trade-off for reliability at 960W.

Is 3.9W no-load power normal for 960W?

Yes. At 960W rated output, 3.9W no-load represents just 0.4% of rated power. This is the housekeeping power for the PFC stage, control circuits, and auxiliary supply in a fanless high-power design. It is higher than lower-wattage XDR-E models but negligible relative to the 960W output capability.
