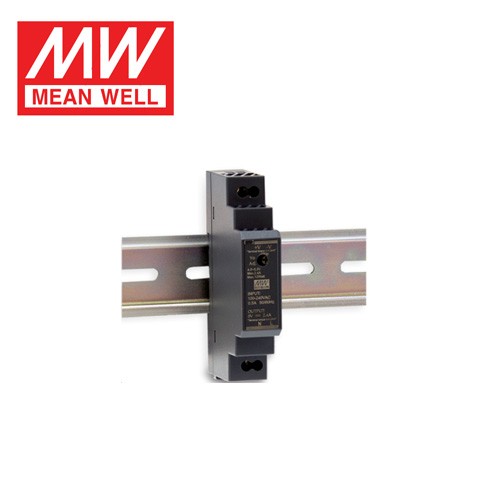

MEAN WELL Power Supply HDR-15 Series Ultra Slim Step Shape DIN Rail

Product Item : HDR-15 series
Category：DIN Rail Power Supplies
Wattage: 15W
Input Voltage: 85 ~ 264VAC(277VAC operational) 120 ~ 370VDC(390VDC operational)
Output Current: 0 ~ 2.4A
Output Voltage: 5 ~ 48V
Product description：HDR-15 is one economical ultra slim 15W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails.
INQUIRY EMAIL

HDR-15 Series - 15W Ultra-Slim 1SU DIN Rail Power Supply (17.5mm)

✓ In Stock 3-Year Warranty 17.5mm 1SU Class II <0.3W No-Load LPS Certified

				Key Performance at a Glance

						15W

						Rated Power

						17.5mm

						Width (1SU)

						<0.3W

						No-Load Power

						4KVac

						I/P-O/P Isolation

						30ms

						Hold-up (230Vac)

						-30~70C

						Operating Temp

Product Overview

The HDR-15 series is an ultra-compact 15W DIN rail power supply in a 17.5mm (1SU) plastic housing — the narrowest DIN rail supply in the MEAN WELL lineup. With Class II double insulation (no FG/earth required), <0.3W no-load consumption, and LPS (Limited Power Source) certification, it is purpose-built for building automation, home control systems, and space-constrained industrial panels.

The HDR-15 accepts 85~264Vac universal input (277Vac also usable) with only 0.5A/115V, 0.25A/230V AC current. Five output voltages - 5V, 12V, 15V, 24V, and 48V — cover a wide range of applications from TTL logic to PoE edge devices and building sensors. Efficiency ranges from 80% to 87% with an exceptional 30ms hold-up at 230Vac and 12ms at 115Vac — remarkable for such a compact supply.

The plastic housing with Class II isolation eliminates the need for protective earth, simplifying wiring and reducing installation cost. 4KVac I/P-O/P reinforced isolation provides robust safety even in the compact design. The LPS certification means the output is limited to safe levels per IEC 62368-1, allowing installation without additional fusing in many applications. OVP uses zener diode clamping for fast, reliable overvoltage protection.

Certifications include UL62368-1, UL508, TUV BS EN/EN61558-2-16, EAC, BSMI, BIS (except 48V). The OVC III rating per EN61558 and EN62477-1 supports up to 2,000m altitude. At just 74g and 160 units per carton, the HDR-15 is the lightest, most compact DIN rail supply in the MEAN WELL portfolio.

Product Images

Technical Specifications

Parameter	HDR-15-5	HDR-15-12	HDR-15-15	HDR-15-24	HDR-15-48
DC Output Voltage	5V	12V	15V	24V	48V
Rated Current	2.4A	1.25A	1A	0.63A	0.32A
Rated Power	12W	15W	15W	15.2W	15.4W
Ripple & Noise	80mVp-p	120mVp-p	120mVp-p	150mVp-p	240mVp-p
Voltage Adj Range	4.5~5.5V	10.8~13.8V	13.5~18V	21.6~29V	43.2~55.2V
Voltage Accuracy	+/-2.0%	+/-1.0%	+/-1.0%	+/-1.0%	+/-1.0%
Line/Load Regulation	+/-1.0% /+/-1.0%	+/-1.0% /+/-1.0%	+/-1.0% /+/-1.0%	+/-1.0% /+/-1.0%	+/-1.0% /+/-1.0%
Efficiency (Typ.)	80%	85%	85.5%	86%	87%

Input Specifications (All Models)

Input Voltage Range	85~264Vac (277Vac also usable); 120~370Vdc (390Vdc usable)
Frequency / AC Current	47~63Hz \| 0.5A/115V, 0.25A/230V
Inrush / No-Load / Hold-up	25A/115V, 45A/230V \| <0.3W \| 30ms/230V, 12ms/115V
Start-up / Rise Time	2000ms/80ms @ 230V & 115V (full load)

Protection & Features

Overload	110~145%; Hiccup <50% Vo / CC at 50~100% Vo, auto-recovery after fault removal
OVP (Zener Clamp)	5V: 5.75~6.75V / 12V: 14.2~16.2V / 15V: 18.8~22.5V / 24V: 30~36V / 48V: 56.5~64.8V — zener diode shutdown
Class II Isolation	Double-insulated plastic housing — no FG/earth required; 4-pin terminal: +V, -V, AC/N, AC/L
LPS (Limited Power Source)	Output limited to safe levels per IEC 62368-1 — install without additional fusing in many applications
LED Indicator	Power-on indicator for visual status confirmation
Safety	UL62368-1, UL508, TUV BS EN/EN61558-2-16, EAC, BSMI \| BIS IS13252 (except 48V) \| OVC III EN61558/EN62477-1
Isolation / EMC	4KVac I/P-O/P \| Class B (CISPR32) + Harmonic Class A + EN61000-6-2 Heavy Industrial
Temp / Altitude / MTBF	-30~+70C \| 2,000m (OVC III) \| 3,724.3K hrs Telcordia
Dimensions / Weight	17.5 x 90 x 54.5 mm / 74g / 160 pcs per carton / 12.9 kg

Key Features

17.5mm Ultra-Slim (1SU)
Narrowest DIN rail supply in MEAN WELL portfolio — fits 56 units per meter of DIN rail for maximum panel density

Class II Double-Insulated Plastic Housing
No protective earth required — 4-pin terminal simplifies wiring and reduces installation cost for building automation

<0.3W No-Load Consumption
Ultra-low standby power meets stringent energy regulations — ideal for always-on building and home control systems

LPS (Limited Power Source) Certified
Output limited to safe energy levels — simplifies wiring, eliminates need for additional fusing per IEC 62368-1

5 Voltage Options Including 5V & 15V
Widest voltage selection in the ultra-slim class — 5V for TTL/logic, 15V for sensors and battery floating charge

4KVac I/P-O/P + OVC III
Reinforced isolation in a plastic 17.5mm body with OVC III per EN61558 — safety without compromise

Frequently Asked Questions

What does Class II and "no earth required" mean?

The HDR-15 uses a double-insulated plastic housing with no exposed metal parts. The 4-pin terminal has only +V, -V, AC/N, and AC/L — no FG (earth) connection. This means you don't need to run a protective earth wire to each unit, simplifying wiring in building automation panels and reducing installation cost. The 4KVac I/P-O/P isolation ensures safety equivalent to earthed designs.

What voltages are available and which is best for my application?

Five voltages: 5V (2.4A/12W) for TTL/logic circuits; 12V (1.25A/15W) for general industrial; 15V (1A/15W) for sensors and battery floating charge; 24V (0.63A/15.2W) for building automation, PLCs, and sensors; 48V (0.32A/15.4W) for PoE edge devices. Note: 5V is derated to 12W, and 48V is not BIS certified for India.

Is the HDR-15 suitable for outdoor use?

The HDR-15 operates from -30C to +70C with plastic housing, but it has no IP rating. For outdoor installations, it must be installed inside a weatherproof enclosure. The plastic body provides some inherent corrosion resistance, but the terminal area requires protection from moisture and dust.
