MEAN WELL Power Supply HDR-30 Series Ultra Slim Step Shape DIN Rail

Product Item : HDR-30 series
Category：DIN Rail Power Supplies
Wattage: 30W
Input Voltage: 85 ~ 264VAC(277VAC operational) 120 ~ 370VDC(390VDC operational)
Output Current: 0 ~ 3A
Output Voltage: 5 ~ 48V
Product description：HDR-30 is one economical ultra slim 30W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails.
INQUIRY EMAIL

HDR-30 Series - 30W Ultra-Slim 2SU DIN Rail Power Supply (35mm, Up to 36W Boosted)

✓ In Stock3-Year36W BoostedClass II<0.3WLPS

				Key Performance at a Glance

						36W

						Max Power (24V/48V)

						35mm

						Width (2SU)

						90%

						Max Efficiency

						<0.3W

						No-Load Power

						30ms

						Hold-up (230Vac)

						4KVac

						I/P-O/P Isolation

Product Overview

The HDR-30 series is a 30W Class II plastic DIN rail supply with a unique feature: 24V and 48V models are boosted to 36W — delivering 20% more power than the series name suggests. At 35mm (2SU), it doubles the width of HDR-15 while providing a substantial power increase to 30W nominal (36W boosted) across 5 voltage options.

The HDR-30 accepts 85~264Vac input (277Vac also usable) with 0.88A/115V, 0.48A/230V AC current. Five voltages - 5V (3A/15W), 12V (2A/24W), 15V (2A/30W), 24V (1.5A/36W boosted), and 48V (0.75A/36W boosted). Efficiency reaches 90% at 48V. The OVP uses shutdown+restart mode (vs zener clamp on HDR-15) for higher-power protection, and the overload range extends to 160% (vs 145% on HDR-15).

The start-up time of 500ms is significantly faster than HDR-15's 2000ms. The same Class II plastic housing, LPS certification, <0.3W standby, 4KVac I/P-O/P, 30ms hold-up, and global certifications (UL508/62368-1, TUV, EAC, BSMI, BIS except 48V) make the HDR-30 a powerful step up for building automation and industrial control where more current is needed per DIN rail slot. At 35mm and 0.13kg, it delivers the highest power density in the Class II plastic DIN rail segment.

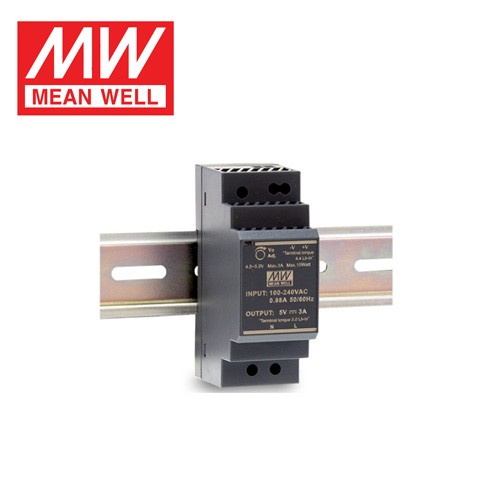

Product Images

Technical Specifications

Parameter	HDR-30-5	HDR-30-12	HDR-30-15	HDR-30-24	HDR-30-48
DC Output Voltage	5V	12V	15V	24V	48V
Rated Current	3A	2A	2A	1.5A	0.75A
Rated Power	15W	24W	30W	36W*	36W*
Ripple & Noise	80mVp-p	120mVp-p	120mVp-p	150mVp-p	240mVp-p
Voltage Adj Range	4.5~5.5V	10.8~13.8V	13.5~18V	21.6~29V	43.2~55.2V
Voltage Accuracy	+/-2.0%	+/-1.0%	+/-1.0%	+/-1.0%	+/-1.0%
Efficiency (Typ.)	82%	88%	89%	89%	90%

* 24V and 48V models are boosted to 36W — exceeding the nominal 30W series rating.

Input Specifications (All Models)

Input Voltage Range	85~264Vac (277Vac also usable); 120~370Vdc (390Vdc usable)
Frequency / AC Current	47~63Hz \| 0.88A/115V, 0.48A/230V
Inrush / No-Load / Hold-up	25A/115V, 45A/230V \| <0.3W \| 30ms/230V, 12ms/115V
Start-up / Rise Time	500ms/50ms @ 230V & 115V — 4x faster than HDR-15

Protection & Features

Overload	105~160%; Hiccup <50% Vo / CC at 50~100% Vo, auto-recovery after fault removal
OVP (Shutdown+Restart)	5V: 5.75~7.5V / 12V: 15~18V / 15V: 18.8~22.5V / 24V: 30~36V / 48V: 57.6~67.2V — shutdown output, restart to recover
Class II / LPS / LED	Double-insulated plastic — no FG \| LPS certified per IEC 62368-1 \| Power-on LED
Safety	UL62368-1, UL508, TUV BS EN/EN61558-2-16, EAC, BSMI \| BIS IS13252 (except 48V) \| OVC III EN61558
Isolation / EMC	4KVac I/P-O/P \| Class B (CISPR32) + Harmonic Class A + EN61000-6-2 Heavy Industrial
Temp / Altitude / MTBF	-30~+70C \| 2,000m \| 3,670.4K hrs Telcordia
Dimensions / Weight	35 x 90 x 54.5 mm / 0.13 kg / 96 pcs per carton / 14.2 kg

Key Features

36W Boosted (24V/48V) — Exceeds Rating
24V delivers 1.5A/36W and 48V delivers 0.75A/36W — 20% more power than the 30W name suggests

Class II Double-Insulated Plastic
No FG/earth needed — 4-pin terminal simplifies wiring for building automation and distributed power panels

500ms Fast Start-up
4x faster start-up than HDR-15 — beneficial for systems with frequent power cycling or quick recovery requirements

90% Efficiency + <0.3W Standby
Highest efficiency in the HDR family with ultra-low standby — meets strict building energy codes

160% Overload Capacity
105~160% OLP range with dual-mode protection — handles larger momentary loads than HDR-15's 145% limit

5 Voltage Options + LPS Safe
5V/12V/15V/24V/48V with Limited Power Source certification — widest voltage choice in the Class II DIN rail class

Frequently Asked Questions

Why are 24V and 48V rated at 36W instead of 30W?

The HDR-30 uses a platform that can deliver up to 36W at higher output voltages. The 24V (1.5A) and 48V (0.75A) models take advantage of this headroom. The "30W" in the series name refers to the 15V model's rated power — the other voltages have different power ratings based on their current capability. This means you get more usable power at 24V and 48V than expected.

How does HDR-30 differ from HDR-15?

Key differences: (1) 35mm/2SU vs 17.5mm/1SU, (2) 24V/48V boosted to 36W vs 15W, (3) OVP shutdown+restart vs zener clamp, (4) 160% OLP vs 145%, (5) 500ms start-up vs 2000ms, (6) 0.88A AC current vs 0.5A. Choose HDR-15 for maximum panel density (56/m); choose HDR-30 for more output power per slot with faster start-up.
