MEAN WELL Power Supply HDR-60 Series Ultra Slim Step Shape DIN Rail

Product Item : HDR-60 series
Category：DIN Rail Power Supplies
Wattage: 60W
Input Voltage: 85 ~ 264VAC(277VAC operational) 120 ~ 370VDC(390VDC operational)
Output Current: 0 ~ 6.5A
Output Voltage: 5 ~ 48V
Product description：HDR-60 is one economical ultra slim 60W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails.
INQUIRY EMAIL

HDR-60 Series - 60W Ultra-Slim 3SU DIN Rail Power Supply (52.5mm, Up to 91% Efficiency)

✓ In Stock3-Year91% EfficiencyClass II<0.3W6-Pin

				Key Performance at a Glance

						60W

						Rated Power

						91%

						Max Efficiency

						52.5mm

						Width (3SU)

						6.5A

						Max Current (5V)

						30ms

						Hold-up (230Vac)

						4KVac

						I/P-O/P

Product Overview

The HDR-60 series is the largest HDR model — a 60W Class II plastic DIN rail supply with 91% peak efficiency, 6-pin dual +/-V terminals, and a 52.5mm (3SU) width. It doubles the power of HDR-30 while maintaining the same Class II safety, LPS certification, and <0.3W standby.

The HDR-60 accepts 85~264Vac input (277Vac usable) with 1.2A/115V, 0.8A/230V AC current. Five voltages: 5V (6.5A/32.5W), 12V (4.5A/54W), 15V (4A/60W), 24V (2.5A/60W), and 48V (1.25A/60W). Efficiency ranges from 85% to 91% at 48V — the highest in the HDR family. The 6-pin terminal with dual +V and dual -V supports higher current distribution with lower voltage drop.

All HDR-60 protections (OVP shutdown+restart, 105~160% OLP, SC auto-recovery) operate identically to HDR-30, with the same Class II plastic body, 4KVac I/P-O/P isolation, 30ms hold-up, 500ms start-up, and global certifications (UL508/62368-1, TUV, EAC, BSMI, BIS — note: some models may not carry BIS marking). At 52.5mm and 190g, it is the definitive Class II DIN rail supply for building automation panels requiring 60W distributed power.

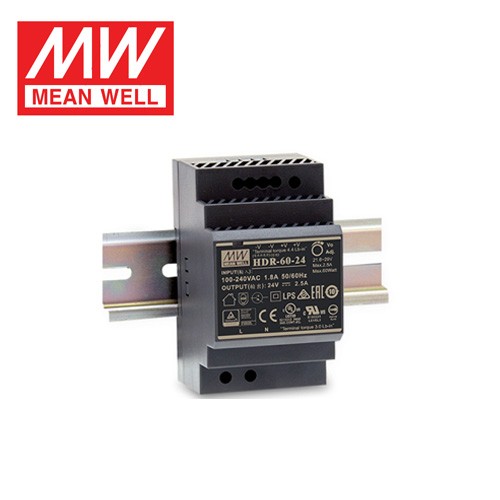

Product Images

Technical Specifications

Parameter	HDR-60-5	HDR-60-12	HDR-60-15	HDR-60-24	HDR-60-48
DC Output Voltage	5V	12V	15V	24V	48V
Rated Current	6.5A	4.5A	4A	2.5A	1.25A
Rated Power	32.5W	54W	60W	60W	60W
Ripple & Noise	80mVp-p	120mVp-p	120mVp-p	150mVp-p	240mVp-p
Voltage Adj Range	5.0~5.5V	10.8~13.8V	13.5~18V	21.6~29V	43.2~55.2V
Efficiency (Typ.)	85%	88%	89%	90%	91%

Input & Features (All Models)

Input Voltage	85~264Vac (277Vac usable); 120~370Vdc (390Vdc usable)
AC Current / Inrush / No-Load	1.2A/115V, 0.8A/230V \| 30A/115V, 60A/230V \| <0.3W
Hold-up / Start-up	30ms/230V, 12ms/115V \| 500ms/50ms @ 230V & 115V
6-Pin Terminal	Dual -V (1,2) + Dual +V (3,4) + AC/L (5) + AC/N (6) — no FG
Overload / OVP / SC	105~160%; Hiccup<50%Vo / CC@50~100%Vo \| OVP: shutdown+restart \| SC: auto-recovery
Safety	UL62368-1, UL508, TUV BS EN/EN61558-2-16, EAC, BSMI, BIS (some models may not have BIS marking)
Isolation / EMC / Temp	4KVac I/P-O/P \| Class B + EN61000-6-2 \| -30~+70C / 2,000m
MTBF / Dimensions / Weight	3,524.8K hrs \| 52.5 x 90 x 54.5 mm / 190g / 60pcs per carton

Key Features

91% Efficiency — HDR Family Best
Highest efficiency in the HDR lineup at 48V — minimal heat in compact enclosures, ideal for always-on building systems

6-Pin Dual +/-V Terminal
Dual positive and dual negative output pins — lower voltage drop for 60W high-current distribution to multiple loads

60W Class II — HDR Maximum
Largest Class II plastic DIN rail supply with 15V/24V/48V full 60W — powers entire building automation sub-panels

5 Voltage Options + LPS
Widest voltage selection in the Class II 60W class — 5V (6.5A) to 48V (1.25A) with LPS safety certification

500ms Start-up + 30ms Hold-up
Fast recovery with excellent brownout ride-through — reliable Class II power for 60W building control systems

52.5mm 3SU + 3-Year Warranty
Maximum HDR power in a slim 3SU chassis with 100% burn-in — industrial reliability for distributed 60W power

Frequently Asked Questions

How does HDR-60 compare to HDR-30?

HDR-60 doubles power (60W vs 30W), adds 6-pin dual +/-V terminals (vs 4-pin single), improves peak efficiency (91% vs 90%), and is 52.5mm/3SU vs 35mm/2SU. The 5V model delivers 6.5A/32.5W vs 3A/15W, and the 24V model delivers 2.5A/60W vs 1.5A/36W. Choose HDR-60 when you need 60W of Class II distributed power per DIN rail slot.

Is BIS certification available for all models?

BIS IS13252 is listed in the specifications, but MEAN WELL notes that some models may not carry the BIS marking. Contact sales to confirm BIS availability for your specific voltage model before ordering for India-bound shipments.

Why does 5V only deliver 32.5W?

At 5V output, the 6.5A current limit results in 32.5W — this is a thermal limitation of the platform at very low output voltages. For full 60W, choose 15V, 24V, or 48V models.
