MEAN WELL Power Supply SDR-960 Series Single Output DIN Rail Mounted with PFC Function

Product Item : SDR-960 series
Category：DIN Rail Power Supplies
Wattage: 960W
Input Voltage: 180 ~ 264VAC or 254 ~ 370VDC
Output Current: 0 ~ 40A
Output Voltage: 24 ~ 48V
Product description：The MEAN WELL SDR-960 series DIN rail power supplies offer a high level of energy efficiency and low power dissipation.
INQUIRY EMAIL

SDR-960 Series - 960W DIN Rail Power Supply with PFC, Parallel & 130% Peak — SDR Maximum Power

✓ In Stock3-YearParallel 3840W130% PeakDC OK RelayKC Certified

⚠ 230V Only: Input range 180~264Vac — NOT compatible with 115Vac mains. For 115V/230V universal at similar power, see SDR-480P.

				Key Performance at a Glance

						960W

						Rated Power

						3840W

						Parallel Max (3+1)

						1248W

						Peak Power (3s)

						94%

						Efficiency

						40A

						Max Current (24V)

						110mm

						Width

Product Overview

The SDR-960 series is the largest and most powerful SDR model ever — a 960W near-kilowatt DIN rail supply with parallel capability up to 3840W (3+1), 130% peak power (1248W/3s), and a dedicated 4-pin CN205 control connector for P+/P- current sharing and DC OK relay. Built for 230Vac-only high-power industrial environments, it delivers 40A at 24V and 20A at 48V with 94% efficiency and CC limiting.

This is a completely different platform from SDR-480: 180~264Vac only (no 115V support), a larger 110mm chassis, 6-pin triple output terminals for 40A distribution, and a separate 4-pin control connector for parallel and monitoring. The parallel configuration supports up to 4 units for 3840W with 0.2V max voltage difference and >5% minimum load. Overload auto-recovery is unique: after a 105~130% peak exceeding 3 seconds, the unit shuts down and automatically recovers within 30 seconds of peak removal.

Certifications include UL508, TUV, BSMI, AS/NZS, EAC, and KC (Korean). EMC is Class B conducted but Class A radiated — suitable for industrial environments but verify for residential use. With -30C minimum temperature, the SDR-960 operates in the coldest environments in the SDR family. At 110x125.2x150mm and 2.47kg, it is built for maximum power delivery in demanding industrial and infrastructure applications.

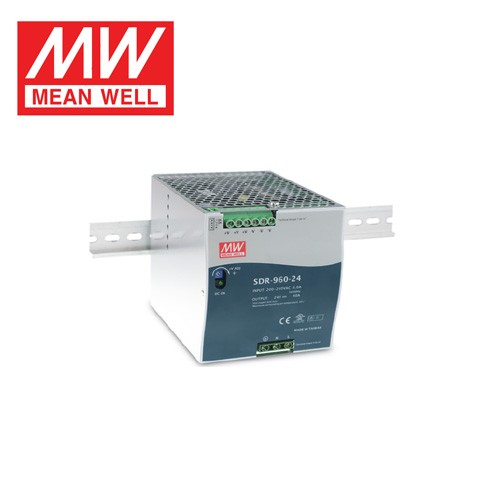

Product Images

Technical Specifications (230Vac)

Parameter	SDR-960-24	SDR-960-48
DC Output Voltage	24V	48V
Rated Current	40A	20A
Rated / Parallel Max	960W / 3840W (3+1)	960W / 3840W (3+1)
Peak Current / Power (3s)	52A / 1248W	26A / 1248W
Ripple & Noise	180mVp-p	250mVp-p
Voltage Adj / Accuracy / Regulation	24~28V / +/-1.0% / Line 0.5%, Load 1.0%	48~55V / +/-1.0%
Efficiency (Typ.)	94%	94%

Input & Features (All Models — 230V Only)

Input Voltage	180~264Vac (230V only); 254~370Vdc — NOT 115V compatible
PFC / AC Current / PF	Active PFC (65KHz) \| 6A/230V \| PF>0.95/230V
Inrush / Leakage / Hold-up	50A/230V cold start \| <3.5mA/240V \| 14ms/230V
Start-up / Peak Recovery	1000ms/100ms @ 230V \| 50s@rated → 130%/3s \| 15s@50% → 130%/3s
Output Terminal	6-pin: Triple +V (1,2,3) + Triple -V (4,5,6) — heavy-duty for 40A continuous
CN205 Control Connector	4-pin: P- (1), P+ (2), DC OK (3), DC OK (4) — 28~20 AWG
Parallel (P+/P-)	Up to 4 units (3+1), 3840W \| Vo diff <0.2V \| I = rated x units x 0.9 \| Min load >5%
DC OK Relay	60Vdc/0.3A, 30Vdc/1A, 30Vac/0.5A resistive — available on CN205 pins 3-4
Overload	105~130%: >3s then shutdown, 30s auto-recovery after peak removal \| >130%: 3s CC then shutdown, restart
OVP / OTP / SC	OVP: 29~33V/56~65V, auto/restart \| OTP: 90C+/-5C, auto-recovery \| SC: auto-recovery
Safety / Certifications	UL508 \| TUV BS EN/EN62368-1 \| BSMI CNS15598-1 \| AS/NZS 62368.1 \| EAC TP TC 004 \| KC \| Meets EN60204-1
EMC / Temp / MTBF / Dims	Class B Conducted + Class A Radiated + EN61000-6-2 \| -30~+70C \| 660.2K hrs \| 110 x 125.2 x 150 mm / 2.47 kg / 6pcs

Key Features

960W + Parallel 3840W (3+1)
SDR's largest single unit with dedicated P+/P- bus via CN205 connector — scale from 960W to 3840W with 4 units

40A at 24V — 6-Pin Terminal
Triple +V and triple -V terminals handle 40A continuous current — largest 24V single-unit SDR output ever

130% Peak + 30s Auto-Recovery
1248W/3s peak with unique 30-second automatic recovery after overload removal — minimal downtime for cyclic loads

94% Efficiency + CC Limiting
Near-kilowatt output with CC circuit for motor starts and battery charging — full power with built-in current control

CN205 4-Pin Control Connector
Dedicated P-/P+/DC OK/DC OK connector — separates control wiring from high-current output for clean installation

UL508 + KC + BSMI + NZS
Certified for North America, Korea, Taiwan, Oceania, and EAC — deploy near-kilowatt SDR power globally

Frequently Asked Questions

⚠ Can SDR-960 work on 115Vac?

No. The SDR-960 input range is 180~264Vac only. For 115V/230V universal at similar power, consider SDR-480P (480W, parallel to 3840W with 8 units) or XDR-480E with parallel capability.

How does the 30-second auto-recovery overload work?

Unique to SDR-960: after a 105~130% overload exceeding 3 seconds, the output shuts down — but automatically recovers within 30 seconds once the peak load is removed. No manual restart, no waiting for temperature to drop. This is ideal for production lines with intermittent peak loads where immediate restart after overload is critical.

What is the CN205 connector and how is parallel wired?

The CN205 is a 4-pin control connector (DINKLE ECH250R-04P) separate from the main power terminals. Pin 1: P- (current share), Pin 2: P+ (current share), Pins 3-4: DC OK relay. For parallel, connect P- of all units together and P+ of all units together using twisted pair wire (28~20 AWG). This separates low-voltage control signals from the heavy 40A output wiring.

Why is radiated EMC Class A instead of Class B?

At 960W output, meeting Class B radiated limits is more challenging. The SDR-960 achieves Class B for conducted emissions but Class A for radiated. For residential applications requiring full Class B, MEAN WELL offers an extended Class B option — contact sales for details.
