MEAN WELL Power Supply XDR-120 Series Single Output DIN Rail Mounted

Product Item : XDR-120 series
Category：DIN Rail Power Supplies
Wattage: 120W
Input Voltage: 85 ~ 305VAC
Output Current: 0 ~ 10A
Output Voltage: 12 ~ 48V
Product description：The XDR-120 series is a 120W AC/DC high-end ultra slim industrial DIN rail power supply.
INQUIRY EMAIL

XDR-120 Series - 120W Premium DIN Rail Power Supply with Active PFC

✓ In Stock5-Year WarrantyActive PFC94% EffORing FET Built-in

				Key Performance at a Glance

						120W

						Rated Power

						94%

						Max Efficiency

						PF>0.98

						Power Factor

						200%

						Peak (240W/5s)

						20ms

						Hold-up

						4

						Output Models

Product Overview

The XDR-120 series represents the pinnacle of MEAN WELL's 120W DIN rail technology. It achieves 94% efficiency with Active PFC (PF>0.98) in the same 30mm ultra-slim form factor as XDR-75 — a remarkable engineering feat. A game-changing new feature is the built-in ORing FET for reverse voltage protection, making it the first XDR model safe for direct connection to motors and inductive loads without external protection diodes.

With 85~305Vac input, dual-stage 80KHz PFC + 65KHz PWM architecture, and 200% peak power (240W for 5 seconds), the XDR-120 delivers exceptional performance. All 24/36/48V models achieve identical 94% efficiency — a rare level of consistency. The overload protection introduces intelligent hiccup mode below 30% Vo (vs latch on XDR-75), providing safer behavior for sustained fault conditions.

The ORing FET is a standout feature for industrial automation: when powering motors, solenoids, or inductive loads, the back-EMF generated during deceleration cannot flow back into the supply and cause damage. The XDR-120 actively blocks reverse voltages up to 16V (12V model), 35V (24V), 50V (36V), and 63V (48V) — eliminating the need for external protection circuitry.

Full XDR premium features: DC OK relay contact (30Vdc/1A), remote ON/OFF (RC+/RC-: <0.8V=ON, 3.3~5V=OFF), 20ms unified hold-up, conformal coating, 3 terminal types (Screw/LA/PI). DNV Marine, SEMI F47, HazLoc Class I Div 2, IEC61010 certified. Same 30x125.2x116mm chassis. 5-year warranty.

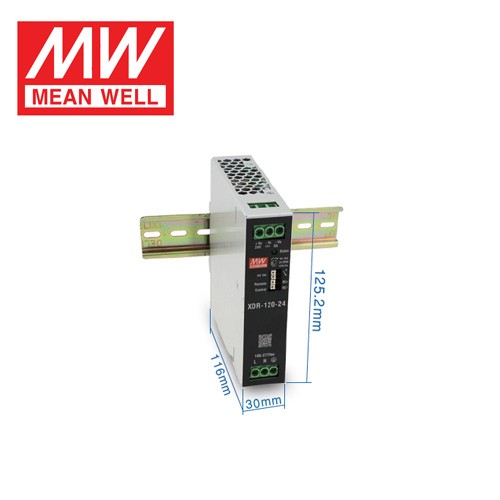

Product Images

Technical Specifications

Parameter	XDR-120-12	XDR-120-24	XDR-120-36	XDR-120-48
DC Output Voltage	12V	24V	36V	48V
Rated Current	10A	5A	3.33A	2.5A
Rated Power	120W	120W	119.9W	120W
Peak Current (5s)	20A	10A	6.66A	5A
Peak Power (5s)	240W	240W	239.8W	240W
Ripple & Noise	100mV	100mV	120mV	120mV
Voltage Adj Range	12~15V	24~29V	36~42V	48~55V
Voltage Accuracy	+/-1.0%	+/-1.0%	+/-1.0%	+/-1.0%
Line / Load Reg	0.5/1.0%	0.5/1.0%	0.5/1.0%	0.5/1.0%
Efficiency (Typ.)	93.5%	94%	94%	94%

Input, Protection & Features (All Models)

Input Voltage	85~305Vac (277Vac compatible); 80~431Vdc. Active PFC: PF>0.98/115V, PF>0.95/230V. <1mA/240V, <1.5mA/277V
AC Current / Inrush	2.3A/115V, 1.2A/230V; Ultra-low inrush: 6A/115V, 10A/230V, 15A/277V cold start
No-load / Hold-up	0.9W remote OFF, 2W remote ON; Hold-up 20ms @ 230V and 115V (unified!)
Overload Protection	105~200% for >5 sec, then CC mode (Vo>30%) or hiccup mode (Vo<30%) — safer than XDR-75 latch
Peak Power	200% rated (240W) for 5 seconds. Transient: 600% Io (12V: 4ms, 24/36/48V: 10ms)
ORing FET Protection	Built-in reverse voltage blocking: 12V:<16V, 24V:<35V, 36V:<50V, 48V:<63V. No external diode needed!
OVP / OTP	OVP: 12V:16~19 / 24V:30~34 / 36V:43~50 / 48V:57~65V. Shutdown, restart. OTP: shutdown, auto-recovery
DC OK / Remote Control	Relay contact 30Vdc/1A, 30Vac/0.5A; RC+/RC-: ON at <0.8V or open, OFF at 3.3~5V
Architecture / Terminals	80KHz PFC + 65KHz PWM dual-stage; Screw / Lever-Actuated LA / Push-In PI

Environmental, Safety & EMC

Operating Temperature	-40~+85C (full load to +60C; derating above). Humidity 20~95% RH; 5,000m altitude
Vibration / OVC	2G vibration, IEC60068-2-6; OVC III (IEC61558, up to 2,000m) / OVC II (IEC61010/62368, up to 5,000m)
Safety Standards	CB IEC62368-1 + IEC61558-1/-2-16 + IEC61010-1/-2-201; TUV EN62368/61558/61010; UL61010 + HazLoc Class I DIV2; CCC; BSMI; EAC; DNV Marine; SEMI F47
Safety Features	I/P-O/P: 4KVac \| I/P-FG: 2KVac \| O/P-FG: 1.5KVac \| O/P-DC OK: 0.5KVac; SELV; conformal coating
EMC Emissions	EN55032 Class B, EN61204-3, EN61000-3-2 Class A, EN61000-3-3, CNS15936, KSC 9832
EMC Immunity	EN55035, EN61000-6-2 Heavy Industrial; ESD 15KV air, Surge 4KV L-L/L-FG, EFT 4KV, Magnetic 30A/m
MTBF / Dimensions	1,550.7K hrs (Telcordia); 30x125.2x116mm; 0.595kg / 20pcs / 12.9kg

Key Features

94% Efficiency + Active PFC
Highest in 120W class. PF>0.98. 80KHz PFC + 65KHz PWM dual-stage. 24/36/48V all at 94%.

ORing FET — Reverse Voltage Protected
Built-in protection against motor back-EMF and reverse current. No external diodes needed. Unique in class.

200% Peak Power (240W/5s)
Double rated power for motor starts and high-inrush loads. 600% Io transient: 4ms (12V) / 10ms (24~48V).

DC OK Relay + Remote ON/OFF
Hard contact for PLC/SCADA monitoring. RC+/RC- for system-level control: <0.8V=ON, 3.3~5V=OFF.

85~305Vac + 20ms Unified Hold-up
277Vac US industrial. 20ms at both 230V and 115V — consistent brownout ride-through.

Hiccup Mode at Low Vo
Overload below 30% Vo enters safe hiccup mode (not latch). More field-friendly than XDR-75.

DNV Marine + SEMI F47 + HazLoc
Shipboard, semiconductor fab, and hazardous location certified. IEC61010 laboratory safety.

-40~85C + 5000m + 30mm
Same chassis as XDR-75 at 60% more power. 4KVac I/P-O/P. OVC III. Conformal coating.

3 Terminal Types + <6A Inrush
Screw/LA/PI options. Ultra-low inrush for stacked installations. 0.9W no-load standby.

5-Year Warranty
UL/TUV/CCC/BSMI/EAC/DNV. Triple IEC standard: 62368-1 + 61558 + 61010. Industry-leading warranty.

Frequently Asked Questions

How does the XDR-120 differ from the XDR-75?

The XDR-120 delivers 120W vs 75W (+60%) in the same 30mm chassis. Key upgrades: (1) Active PFC (PF>0.98) — XDR-75 has none; (2) 94% efficiency (vs 91%); (3) ORing FET for reverse voltage protection — unique to XDR-120; (4) 80KHz PFC + 65KHz PWM dual-stage (vs single 65KHz PWM on XDR-75); (5) 20ms unified hold-up at all voltages (vs 16ms/10ms); (6) hiccup mode below 30% Vo (vs latch below 10% Vo on XDR-75); (7) remote ON threshold <0.8V (vs <0.5V). All XDR premium features remain: DC OK relay, 85~305Vac, -40~85C, DNV/ SEMI/HazLoc, 5-year warranty.

What does the ORing FET do and why is it important?

The ORing FET is an internal semiconductor switch that blocks reverse current flow. When powering motors, solenoids, or inductive loads, the back-EMF generated during deceleration can feed back into the power supply output and cause damage. The XDR-120's ORing FET automatically blocks this reverse voltage without any external protection diodes. Maximum reverse voltage ratings: 12V: <16V, 24V: <35V, 36V: <50V, 48V: <63V. This is a feature typically found only in much more expensive industrial supplies.

Why does the XDR-120 have Active PFC when the XDR-75 doesn't?

At 120W, Active PFC becomes necessary for EN61000-3-2 harmonic compliance with meaningful power margins. The XDR-75 at 75W sits below the threshold where PFC is mandated. The XDR-120's 80KHz PFC stage achieves PF>0.98 at 115VAC while maintaining 94% overall efficiency — an exceptional combination of power quality and conversion efficiency.

How does the overload protection behave at low output voltages?

Unlike the XDR-75 which enters a latch mode below 10% Vo, the XDR-120 uses hiccup mode below 30% Vo. Hiccup mode periodically attempts to restart the output. If the fault clears, normal operation resumes automatically. This is safer for sustained fault conditions and more field-friendly — technicians don't need to manually reset after a temporary short circuit.

Is the XDR-120 suitable for direct motor connection?

Yes — specifically designed for it. The combination of ORing FET (blocks motor back-EMF), 200% peak power (handles motor starts), and 600% transient current (handles inrush) makes the XDR-120 exceptionally well-suited for direct motor, solenoid, and actuator connections. This is the primary application where the XDR-120 surpasses both the XDR-75 and all NDR series models.

Related Products

Select the XDR-120 model. All four feature Active PFC, 94% efficiency, ORing FET, 200% peak power, DC OK relay, remote ON/OFF, and DNV Marine certification.
