MEAN WELL Power Supply XDR-240 Series Single Output DIN Rail Mounted

Product Item : XDR-240 series
Category：DIN Rail Power Supplies
Wattage: 240W
Input Voltage: 85 ~ 305VAC
Output Current: 0 ~ 20A
Output Voltage: 12 ~ 48V
Product description：The XDR-240 series is a 240W AC/DC high-end ultra slim industrial DIN rail power supply.
INQUIRY EMAIL

XDR-240 Series - 240W Premium DIN Rail Power Supply with MODBus & Active PFC

✓ In Stock5-Year WarrantyMODBusParallel 960W95.5% Eff

				Key Performance at a Glance

						240W

						Rated Power

						95.5%

						Max Efficiency

						PF>0.98

						Power Factor

						960W

						Parallel (4x)

						480W

						Peak (5s)

						4

						Output Models

Product Overview

The XDR-240 series is MEAN WELL's most advanced 240W DIN rail power supply — the flagship of the XDR family with MODBus communication, parallel operation up to 960W (3+1), and 95.5% peak efficiency. It integrates industrial IoT connectivity with power supply management, enabling real-time monitoring, remote control, and system-level coordination previously requiring external hardware.

In a 40mm slim profile, the XDR-240 delivers 240W from 85~305Vac input with Active PFC (PF>0.98) and dual-stage 80KHz PFC + 65KHz PWM + MCU control. Four units can be paralleled via CS/GND current-sharing pins for up to 960W total output — a first in the XDR family. The bi-color LED provides 5 distinct diagnostic patterns (red pulses) for overload, overvoltage, overtemperature, reverse voltage, and system faults.

All XDR premium features are present: ORing FET reverse voltage protection, DC OK relay contact, remote ON/OFF (RC+5V_AUX short=ON), 200% peak power (480W for 5 seconds), and 600% transient peak current for 15ms — significantly longer than XDR-120's 4~10ms. The MODBus interface (D+/D- pins) provides access to output voltage, power, input voltage, and status parameters for integration with PLCs and SCADA systems.

UL61010 + HazLoc Class I DIV2, TUV, CCC, BSMI, EAC, DNV Marine, SEMI F47 certified. Triple IEC standard: 62368-1 + 61558 + 61010. 5-year warranty. 40x125.2x116mm, 0.79kg. 3 terminal types: Screw/LA/PI. Includes communication mating cable.

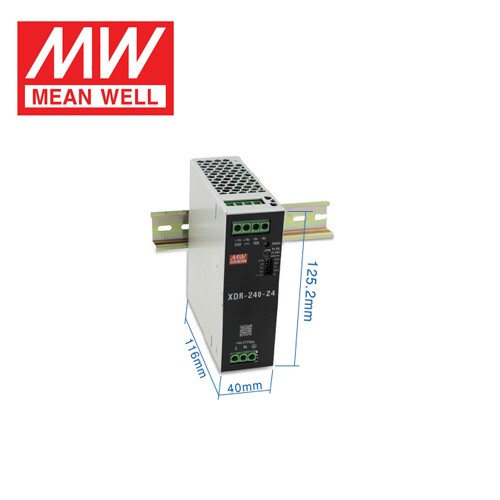

Product Images

Technical Specifications

Parameter	XDR-240-12	XDR-240-24	XDR-240-36	XDR-240-48
DC Output Voltage	12V	24V	36V	48V
Rated Current	20A	10A	6.66A	5A
Rated Power	240W	240W	240W	240W
Peak Current (5s)	40A	20A	13.32A	10A
Peak Power (5s)	480W	480W	480W	480W
Ripple & Noise	100mV	100mV	120mV	150mV
Voltage Adj Range	12~15V	24~29V	36~42V	48~55V
Voltage Accuracy	+/-2.0%	+/-1.0%	+/-1.0%	+/-1.0%
Line / Load Reg	0.5/1.0%	0.5/1.0%	0.5/1.0%	0.5/1.0%
Efficiency (Typ.)	94%	95%	95.5%	95.5%

Input, Protection & Features (All Models)

Input Voltage	85~305Vac (277Vac); 80~431Vdc. Active PFC PF>0.98/115V. Hold-up 20ms @ 277/230/115V (triple unified!)
AC Current / Inrush	2.6A/115V, 1.3A/230V, 1.1A/277V; Ultra-low inrush: 6A/115V, 10A/230V, 15A/277V
No-load / Leakage	1W remote OFF, 2.5W remote ON; <1mA/240V, <1.3mA/277V
Overload Protection	105~200% >5s; CC mode >30%Vo / hiccup mode <30%Vo. Bi-color LED diagnostic: red 1 pulse = OL
Peak Power / Transient	200% (480W/5s); 600% Io transient for 15ms — 3.75x longer than XDR-120's 4ms!
Parallel Operation	Up to 960W (3+1 units). Active current sharing via CS/GND pins. Requires <0.2V output voltage matching
MODBus Interface	D+/D- isolated RS-485. Monitor/control: output voltage, power, input voltage, status. Mating cable included
ORing FET Protection	Reverse blocking: 12V:<16V, 24V:<35V, 36V:<50V, 48V:<63V. Red LED 4-pulse diagnostic
DC OK / Remote / Control Pins	Relay 30V/1A; RC+5V_AUX short=ON, open=OFF; TC pin for transient peak enable; 10-pin signal connector

Environmental, Safety & EMC

Operating Temperature	-40~+85C (full load to +60C). Humidity 20~95% RH; 5,000m altitude
Vibration / OVC	2G vibration, IEC60068-2-6; OVC III (IEC61558) / OVC II (IEC61010/62368, up to 5,000m)
Safety Standards	CB IEC62368-1 + IEC61558 + IEC61010; TUV EN62368/61558/61010; UL61010 + HazLoc Class I DIV2; CCC; BSMI; EAC; DNV Marine; SEMI F47
LED Diagnostics	Green=DC OK, Red DC Fail; Red pulses: 1=OL, 2=OV, 3=OT, 4=Reverse V, 5=System fault; Red blink=high ambient warning
Safety Features	I/P-O/P: 4KVac \| I/P-FG: 2KVac \| O/P-FG: 1.5KVac \| O/P-DC OK: 0.5KVac; SELV; Conformal coating
EMC	EN55032 Class B, EN61204-3, EN61000-3-2 Class A; Immunity: EN55035, EN61000-6-2, ESD 15KV, Surge 4KV, EFT 4KV
MTBF / Dimensions	1,066.2K hrs (Telcordia); 40x125.2x116mm; 0.79kg / 16pcs / 13.6kg

Key Features

MODBus RS-485 Communication
Monitor voltage, power, input, status via D+/D-. Integrates with PLC/SCADA. Mating cable included.

Parallel up to 960W (3+1)
Active current sharing via CS/GND. Scale from 240W to 960W. First XDR with parallel capability.

95.5% Peak Efficiency
36/48V at 95.5%. 80KHz PFC + 65KHz PWM + MCU control. 20ms unified hold-up at all voltages.

Diagnostic Bi-Color LED
5-color coded fault patterns. On-site diagnosis without tools: OL, OV, OT, reverse V, system faults.

200% Peak + 600% 15ms Transient
480W for 5 seconds. 600% Io for 15ms — 3.75x longer than XDR-120. Perfect for heavy motor starts.

ORing FET + Remote ON/OFF
Direct motor connection without diodes. RC+5V_AUX short=ON. Dedicated TC pin for transient control.

240W in 40mm Profile
Double XDR-120 power. 20A at 12V. Same height/depth as XDR-120. Fanless metal housing.

85~305Vac + DNV + HazLoc
277Vac US industrial. Full marine, semiconductor, and hazardous location certifications. IEC61010.

3 Terminal Types + <6A Inrush
Screw/LA/PI. Ultra-low inrush. 1W no-load. Communication mating cable included in box.

5-Year Warranty
UL/TUV/CCC/BSMI/EAC/DNV. Triple IEC: 62368 + 61558 + 61010. Industry's best 240W DIN rail warranty.

Frequently Asked Questions

How does the XDR-240 differ from the XDR-120?

The XDR-240 doubles power to 240W in a 40mm chassis (vs 30mm). Major new features: (1) MODBus RS-485 communication (D+/D-) for real-time monitoring and control; (2) Parallel operation up to 960W (3+1) with active current sharing; (3) 95.5% efficiency (vs 94%); (4) Diagnostic bi-color LED with 5 fault codes; (5) 600% 15ms transient (vs 4~10ms — 3.75x longer); (6) MCU-based control; (7) 20ms triple-unified hold-up at 277/230/115V; (8) 5V_AUX pin for remote control; (9) TC pin for transient peak enable/disable. The XDR-240 is the first XDR designed for Industry 4.0 smart factory integration.

How do I use the MODBus interface?

The XDR-240 provides D+ (Pin 8) and D- (Pin 6) for RS-485 MODBus communication, isolated from the output via GND_AUX (Pin 7). Connect to a PLC or PC via an RS-485 to USB converter. Read parameters include output voltage, output power, input voltage, and status codes. A communication mating cable is included with each unit. Full protocol documentation is available at meanwell.com/manual.html.

How does parallel operation work?

Connect up to 4 XDR-240 units in parallel with CS (Pin 4) and GND (Pin 3) interconnected. Requirements: (1) Disable transient peak (TC pin open); (2) Output voltage difference <0.2V between units; (3) Total current = rated current x units x 0.9 (e.g., 4x 24V/10A = 40A x 0.9 = 36A max); (4) Minimum load >5% of total; (5) Use short, thick parallel wiring. This enables up to 960W (3+1 redundancy) for large automation systems.

What do the LED diagnostic codes mean?

The bi-color LED provides immediate fault identification: Green = DC OK (normal); Solid Red = DC Fail; Red 1 pulse = Overload (>150% 115V / >200% 230V); Red 2 pulses = Overvoltage; Red 3 pulses = Overtemperature; Red 4 pulses = Reverse voltage (ORing FET active); Red 5 pulses = System fault (AC UVP, communication, EEPROM); Red blink = High ambient temperature warning. This eliminates the need for a multimeter during field troubleshooting.

Can I use the XDR-240 for high-inrush motor applications?

Yes — it's specifically designed for this. The 600% transient peak current capability lasting 15ms (vs 4~10ms on XDR-120) provides exceptional headroom for heavy motor starts, large contactor coils, and solenoid banks. After a transient event, allow 15 seconds before the next event. Combined with ORing FET reverse voltage protection, the XDR-240 is the most motor-friendly DIN rail supply in MEAN WELL's lineup.
