MEAN WELL Power Supply XDR-480 Series Single Output DIN Rail Mounted

Product Item : XDR-480 series
Category：DIN Rail Power Supplies
Wattage: 480W
Input Voltage: 85 ~ 305VAC
Output Current: 0 ~ 30A
Output Voltage: 12 ~ 48V
Product description：The XDR-480 series is a 480W AC/DC high-end ultra slim industrial DIN rail power supply.
INQUIRY EMAIL

XDR-480 Series - 480W Premium DIN Rail Power Supply with MODBus & Active PFC

✓ In Stock5-Year WarrantyMODBus96% EffParallel 1920W

				Key Performance at a Glance

						480W

						Rated Power

						96%

						Max Efficiency

						PF>0.98

						Power Factor

						1920W

						Parallel (4x)

						960W

						Peak (5s)

						4

						Output Models

Product Overview

The XDR-480 series is the pinnacle of MEAN WELL's DIN rail power supply technology — the most powerful, most efficient, and most feature-rich model in the entire XDR family. With 96% peak efficiency, parallel operation up to nearly 2 kilowatts (1920W), and full MODBus integration, it represents the state of the art in industrial DIN rail power.

In a 48mm slim profile (125mm deep), the XDR-480 delivers 480W from 85~305Vac input through the proven 80KHz PFC + 65KHz PWM + MCU dual-stage architecture. The 96% efficiency at 48V is the highest in the XDR lineup — only 4% lost as heat at full load, enabling sustained fanless operation in a compact form factor. Parallel operation scales to 1920W (3+1 redundancy) with active current sharing via CS/GND pins.

200% peak power delivers 960W for 5 seconds, with 600% transient peak current for 15ms — identical to XDR-240's exceptional surge capability. The full MODBus RS-485, ORing FET, DC OK relay, diagnostic LED, and remote ON/OFF feature set is present. All four standard voltages are offered, though 12V is derated to 360W (up from 240W on XDR-240).

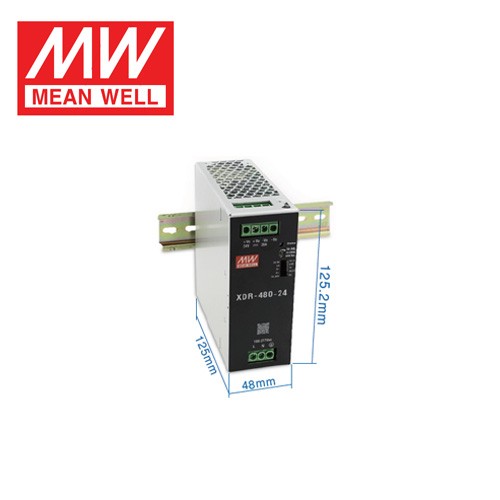

UL61010 + HazLoc Class I DIV2, TUV, CCC, BSMI, EAC, DNV Marine, SEMI F47 certified. Triple IEC: 62368-1 + 61558 + 61010. 5-year warranty. 48x125.2x125mm, 1.1kg. 3 terminal types: Screw/LA/PI. Communication cable included.

Product Images

Technical Specifications

Parameter	XDR-480-12	XDR-480-24	XDR-480-36	XDR-480-48
DC Output Voltage	12V	24V	36V	48V
Rated Current	30A	20A	13.3A	10A
Rated Power	360W *	480W	480W	480W
Peak Current (5s)	60A	40A	26.6A	20A
Peak Power (5s)	720W	960W	960W	960W
Ripple & Noise	100mV	100mV	120mV	120mV
Voltage Adj Range	12~15V	24~29V	36~42V	48~55V
Voltage Accuracy	+/-1.0%	+/-1.0%	+/-1.0%	+/-1.0%
Line / Load Reg	0.5/1.0%	0.5/1.0%	0.5/1.0%	0.5/1.0%
Efficiency (Typ.)	94%	95.5%	95.5%	96%

Input, Protection & Features (All Models)

Input Voltage	85~305Vac (277Vac); 80~431Vdc. Active PFC PF>0.98/115V. Hold-up 15ms @ 277/230/115V (triple unified)
AC Current / Inrush	6A/115V, 3A/230V, 2.5A/277V; Ultra-low inrush: 6A/115V, 10A/230V, 15A/277V
No-load / Leakage	1W remote OFF, 3W remote ON; <1mA/240V, <1.5mA/277V
Overload Protection	105~200% >5s; CC mode >30%Vo / hiccup mode <30%Vo. Bi-color LED diagnostic: red 1 pulse = OL
Peak Power / Transient	200% (720~960W/5s); 600% Io transient for 15ms — best-in-class surge capability
Parallel Operation	Up to 1920W (3+1 units). Active current sharing via CS/GND. <0.2V matching required
MODBus Interface	D+/D- isolated RS-485. Monitor/control: voltage, power, input, status. Cable included
ORing FET Protection	Reverse blocking: 12V:<16V, 24V:<35V, 36V:<50V, 48V:<63V. Red 4-pulse diagnostic
DC OK / Remote / Control	Relay 30V/1A; RC+5V_AUX short=ON; TC transient peak enable; 10-pin signal connector

Environmental, Safety & EMC

Operating Temperature	-40~+85C (full load to +60C). Humidity 20~95% RH; 5,000m altitude
Vibration / OVC	2G, IEC60068-2-6; OVC III (IEC61558) / OVC II (IEC61010/62368, up to 5,000m)
Safety Standards	CB IEC62368-1 + IEC61558 + IEC61010; TUV EN62368/61558/61010; UL61010 + HazLoc Class I DIV2; CCC; BSMI; EAC; DNV Marine; SEMI F47
LED Diagnostics	Green=DC OK, Red DC Fail; Red pulses: 1=OL, 2=OV, 3=OT, 4=Reverse V, 5=System fault; Red blink=high ambient
Safety Features	I/P-O/P: 4KVac \| I/P-FG: 2KVac \| O/P-FG: 1.5KVac \| O/P-DC OK: 0.5KVac; SELV; Conformal coating
EMC	EN55032 Class B, EN61204-3, EN61000-3-2 Class A; Immunity: EN55035, EN61000-6-2, ESD 15KV, Surge 4KV
MTBF / Dimensions	1,139.7K hrs (Telcordia); 48x125.2x125mm; 1.1kg / 12pcs / 14.2kg

Key Features

96% Peak Efficiency
Highest in XDR family — only 4% lost as heat at 48V/480W. 80KHz PFC + 65KHz PWM + MCU.

Parallel up to 1920W (3+1)
Active current sharing via CS/GND. Scale from 480W to nearly 2kW. Redundancy-ready.

MODBus RS-485 + Diagnostic LED
Industry 4.0 enabled. Remote monitoring + 5 pulse-coded fault diagnostics. Cable included.

200% Peak 960W + 600% 15ms Transient
Double rated power for 5 seconds. Class-leading 15ms transient for heavy industrial motor starts.

ORing FET + Remote ON/OFF
Reverse voltage protection for motor loads. RC+5V_AUX short=ON. TC pin for transient control.

480W in 48mm Profile
Twice XDR-240 power. 30A at 12V (360W). Same height as XDR-240. Fanless metal housing.

85~305Vac + 15ms Unified Hold-up
277Vac US industrial. Consistent ride-through at all voltages. <6A ultra-low inrush.

DNV + SEMI F47 + HazLoc
The highest-power DIN rail with full marine, semiconductor, and hazardous location certs.

3 Terminal Types + <6A Inrush
Screw/LA/PI. 1W no-load. Communication cable in box. 12V: 16~10 AWG, 24~48V: 18~10 AWG.

5-Year Warranty
UL/TUV/CCC/BSMI/EAC/DNV. Triple IEC. The most powerful 5-year warranted DIN rail supply.

Frequently Asked Questions

Why is the 12V model derated to 360W?

At 480W, a 12V output would require 40A continuous current. The XDR-480-12 delivers 30A (360W) due to current path and terminal limitations at this power level — the connector and PCB traces cannot practically sustain 40A in a 48mm form factor. For full 480W at 12V, consider paralleling two XDR-240-12 units. The 24V, 36V, and 48V models deliver full 480W without derating.

How does the XDR-480 differ from the XDR-240?

The XDR-480 doubles power to 480W in a 48mm chassis (vs 40mm). Upgrades: (1) 96% efficiency (vs 95.5%); (2) Parallel to 1920W (vs 960W); (3) Peak 960W (vs 480W); (4) 12V derated to 360W; (5) 15ms unified hold-up (vs 20ms — slight trade-off at higher power); (6) 30A at 12V (vs 20A); (7) 1.1kg (vs 0.79kg). Same feature set: MODBus, diagnostic LED, ORing FET, DC OK relay, 600% 15ms transient.

Can I really get nearly 2kW from four XDR-480 units?

Yes — four XDR-480-24 units in parallel deliver up to 20A x 4 x 0.9 x 24V = 1728W of usable output. The theoretical maximum at 48V is 10A x 4 x 0.9 x 48V = 1728W. The 1920W figure refers to the peak instantaneous capacity with 3+1 redundancy. For sustained operation, the 0.9 derating factor applies. This makes the XDR-480 platform capable of powering large automation systems that previously required multiple separate power supplies.

Is the 96% efficiency real-world achievable?

The 96% efficiency is measured at 230VAC input, full load, 25C ambient on the 48V model. In practice, efficiency varies from 94% (12V) to 96% (48V). At the higher end, the 48V model at 230VAC full load truly achieves 96%. This means only 20W of heat at 480W output — an extraordinary figure for a fanless DIN rail supply that explains how 480W is possible in a 48mm passive-cooled chassis.

Does the XDR-480 include the same diagnostic LED as XDR-240?

Yes — identical functionality. Green = DC OK, Red = DC Fail. Red pulse codes: 1 pulse = Overload, 2 pulses = Overvoltage, 3 pulses = Overtemperature, 4 pulses = Reverse voltage (ORing FET active), 5 pulses = System fault (AC UVP, communication, EEPROM). Red continuous blink = High ambient temperature warning. This field diagnostic capability is standard across XDR-240 and XDR-480.
